B-CUBE F4V3S-BMI270 Flight Controller

dronecode

Features:
1. The F4V3S is a 3-6S 36x36mm mini flight controller with a microSD card blackbox, 5V dual BEC. Designed for easy maintenance and low interference.
2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

Specifications:

  • Chip:STM32F405(168MHZ)
  • Gyro:BMI270
  • Barometer:BMP280
  • OSD Chip:AT7456E
  • Black box:MicroSD card blackbox
  • LED Program:Support
  • BB buzzer:Support
  • Input voltage:3-6S
  • I2C Connector:Support
  • BEC:5V/2.5A
  • Cam Input:Support
  • USART:UART1.UART3.UART6
  • Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
  • GPS:YES
  • COMPASS:YES
  • ESC Signal:Dshoot150.Dshot300,Dshot600
  • USB:Micro USB
  • Current Port:Yes.
  • Voltage Sensor:Yes
  • DFU Button:YES
  • FC firmware:betaflight_5.5_OMNIBUSF4SD.hex/ inav_8.0.1_OMNIBUSF4V3.hex
  • Installhole:30.5*30.5*4MM
  • Board size:36*36MM
  • Weight:7.6g

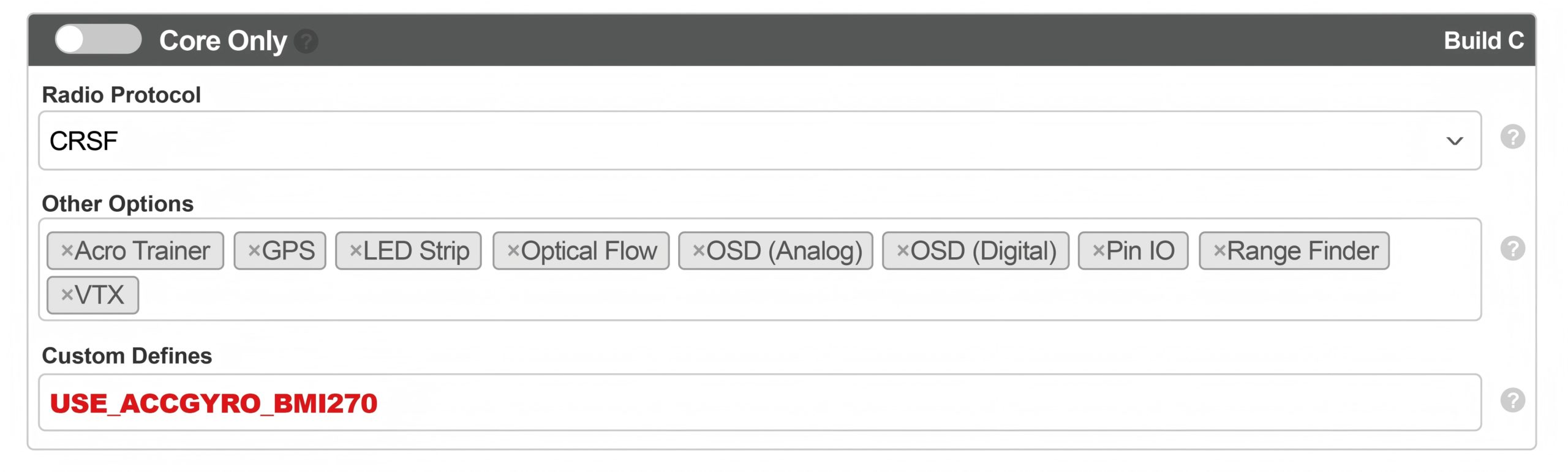

If you want to upload Betaflight firmware, you should enter USE_ACCGYRO_BMI270 at Custom Defines
