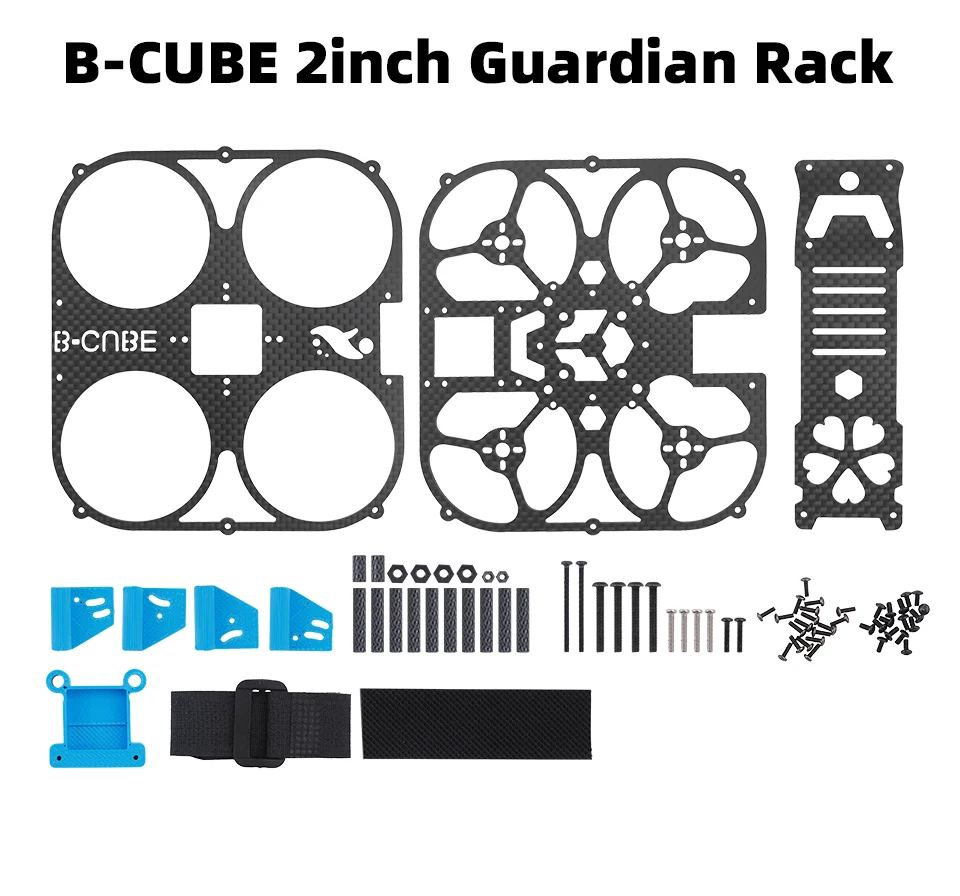

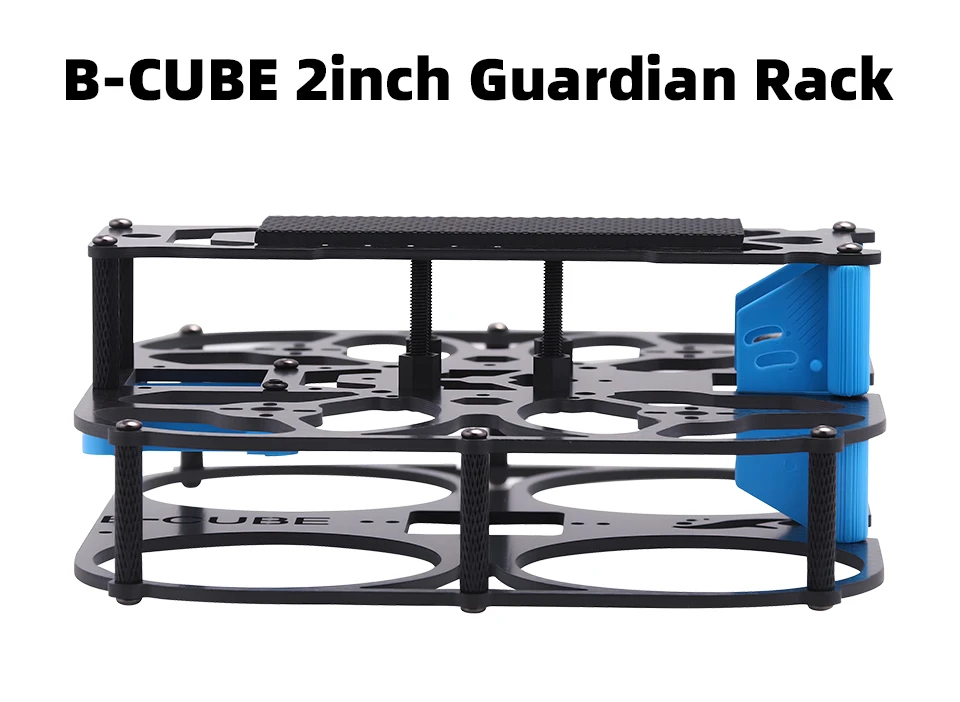

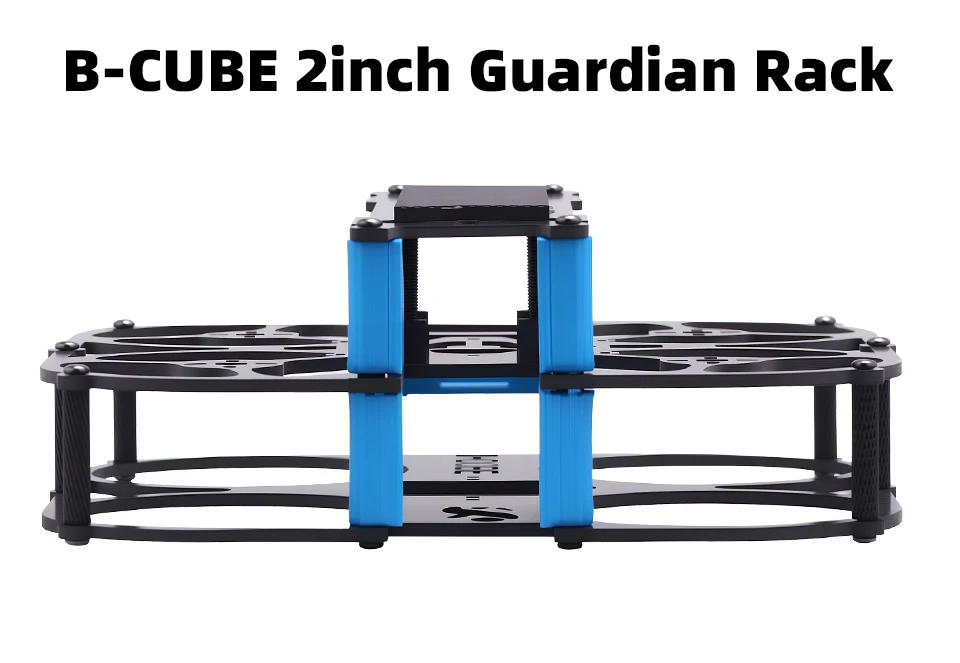

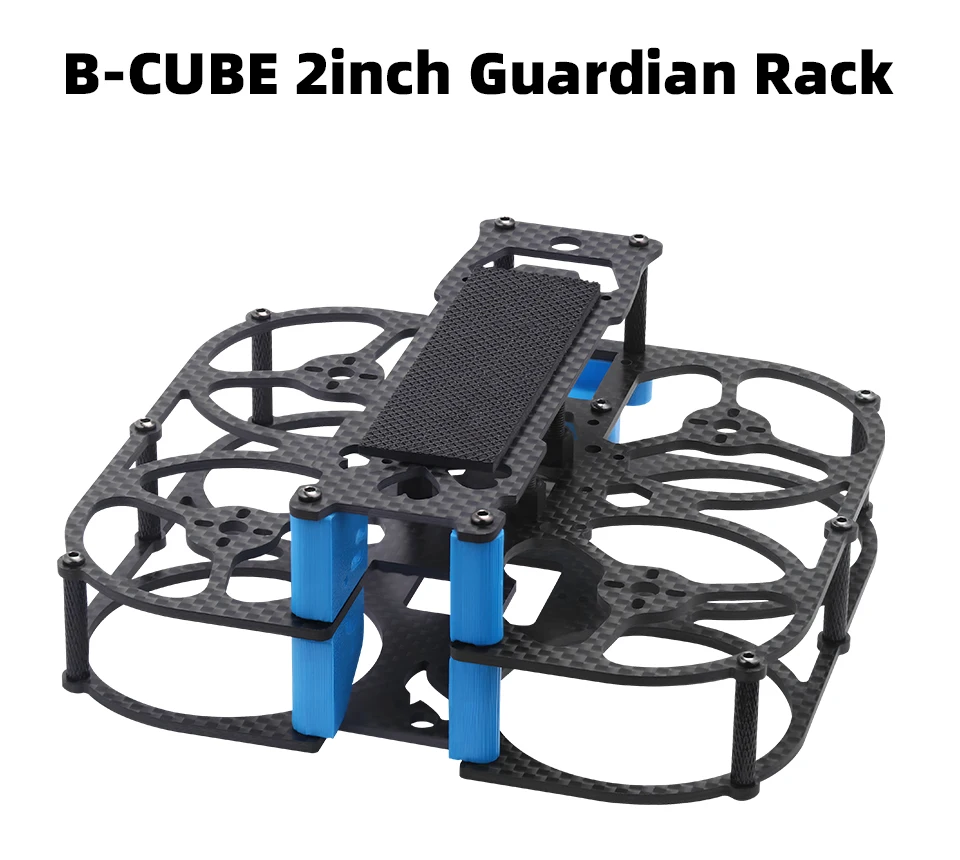

B-CUBE 2inch Guardian

dronecode

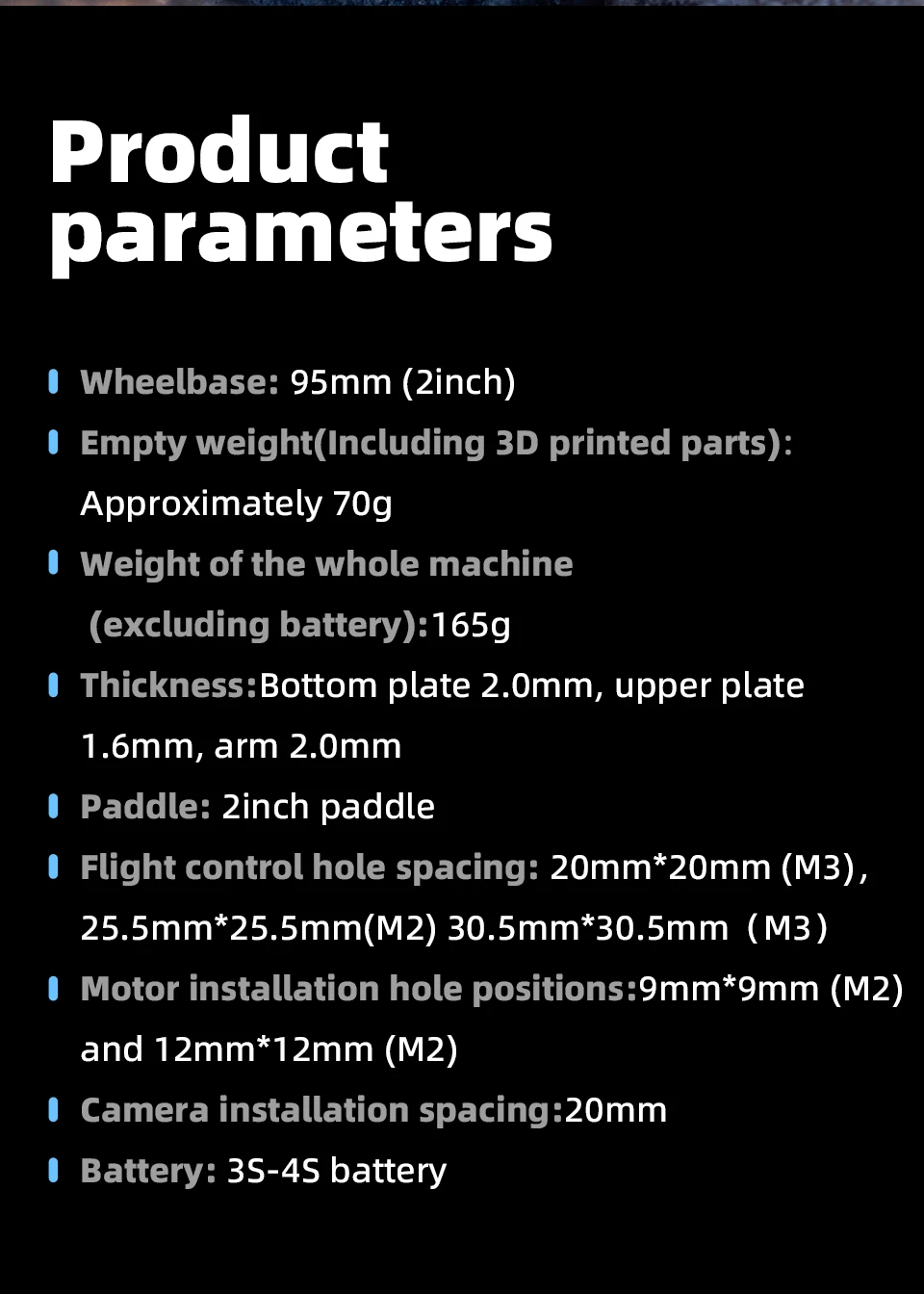

Product parameters:

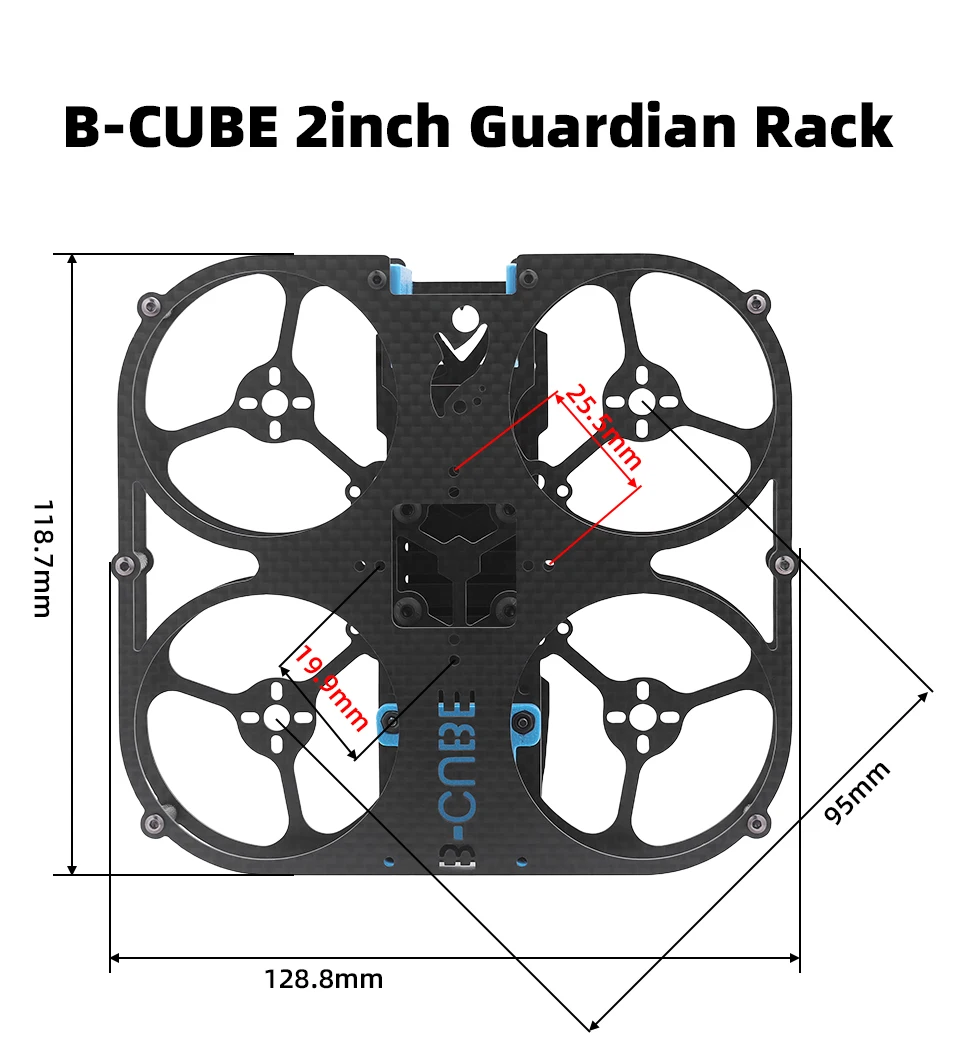

  • Wheelbase: 95mm (2inch)
  • Empty weight（Including 3D printed parts）: Approximately 70g
  • Weight of the whole machine (excluding battery)：165g

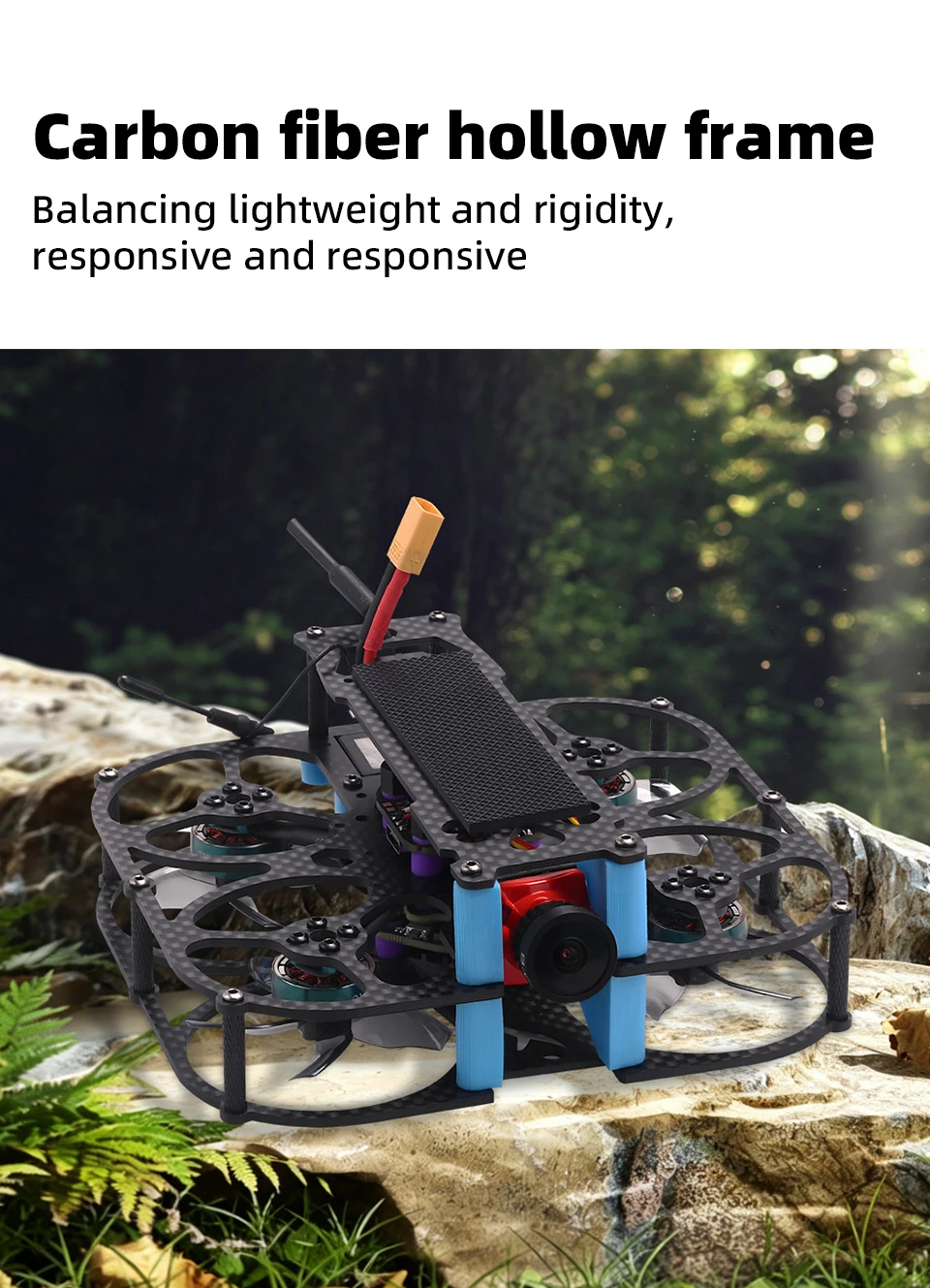

  • Thickness: Bottom plate 2.0mm, upper plate 1.6mm, arm 2.0mm
  • Paddle: 2inch paddle
  • Flight control hole spacing: 20mm * 20mm (M3)，25.5mm * 25.5mm(M2)， 30.5mm*30.5mm（M3）

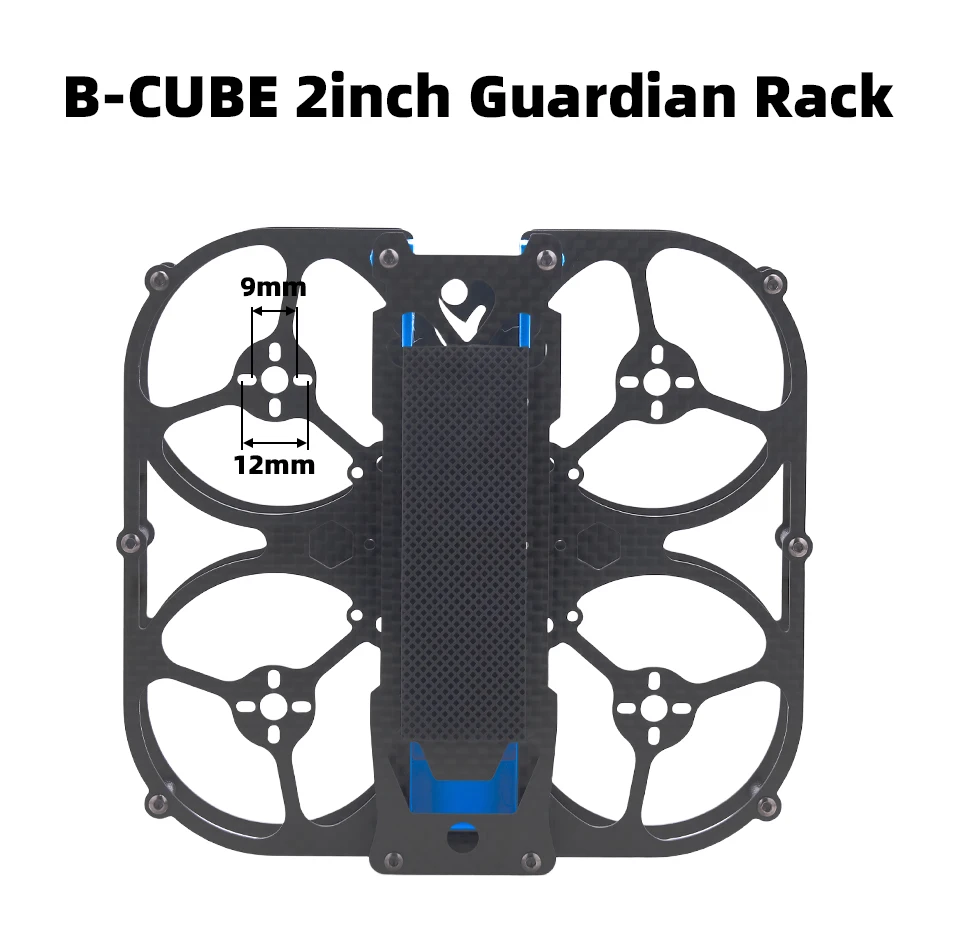

  • Motor installation hole positions: 9mm * 9mm (M2) and 12mm * 12mm (M2)
  • Camera installation spacing：20mm
  • Battery: 3S-4S battery

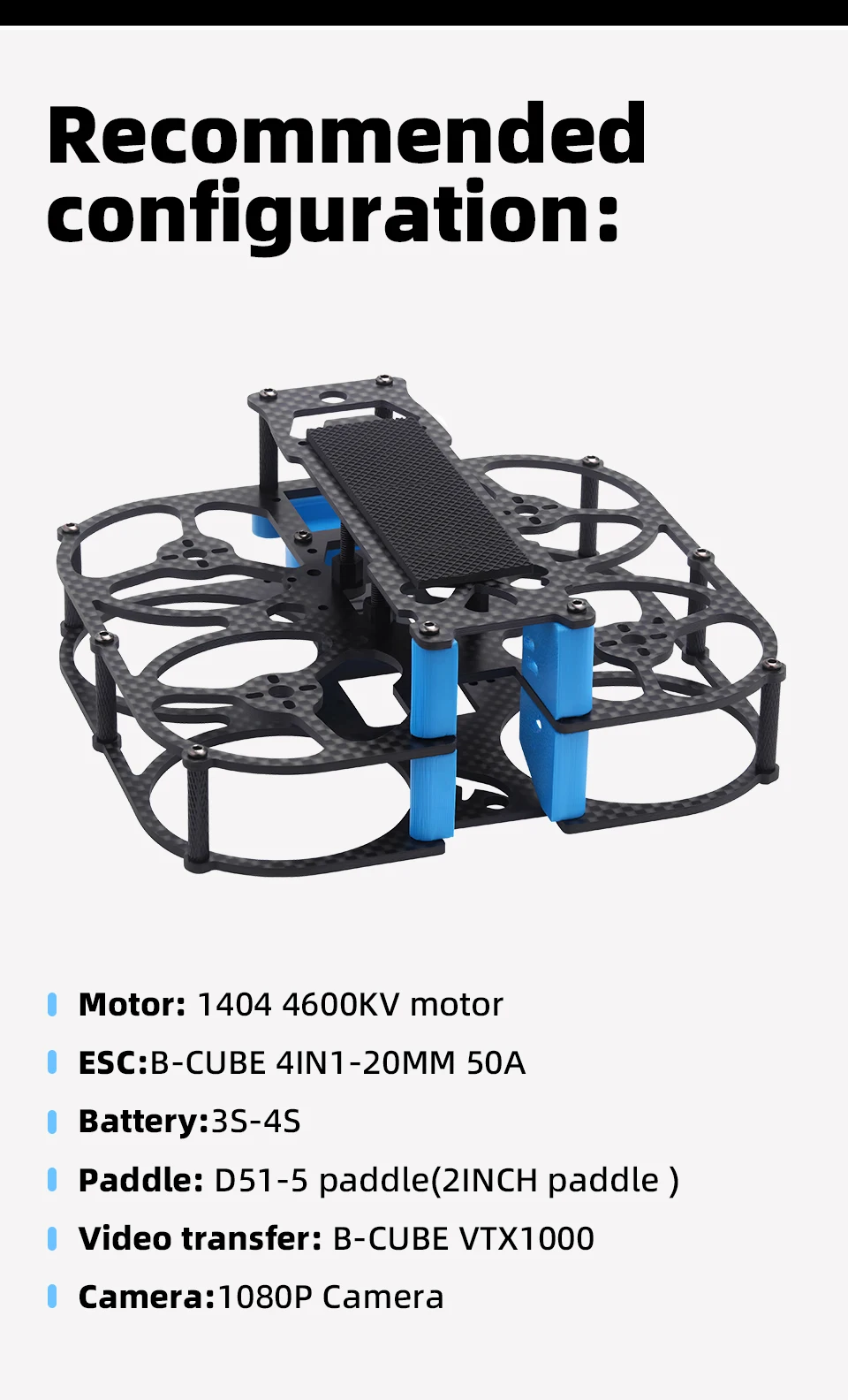

    Recommended configuration:

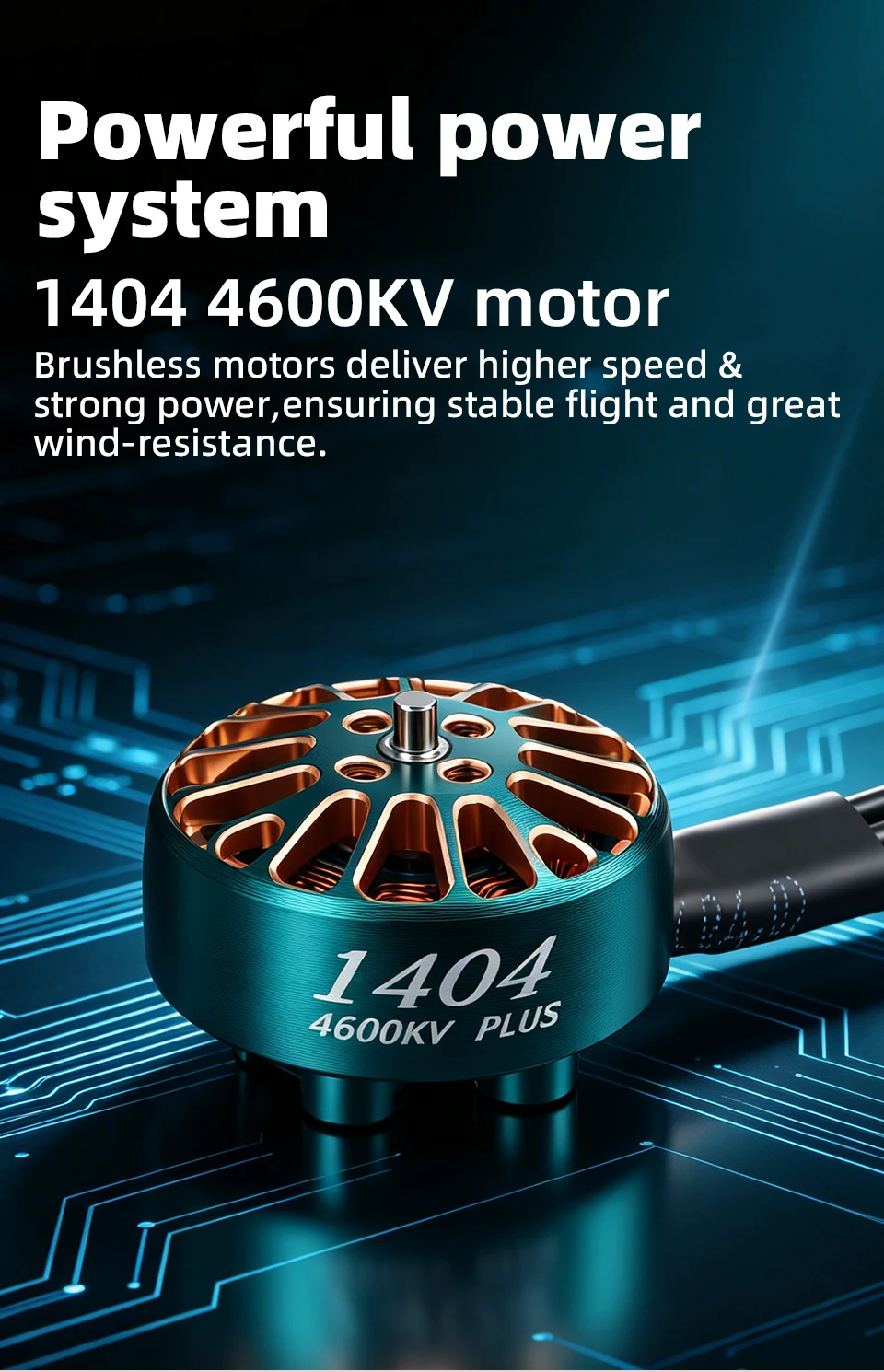

  • Motor: 1404 4600KV motor
  • ESC: B-CUBE 4IN1-20MM 50A
  • Battery: 3S-4S

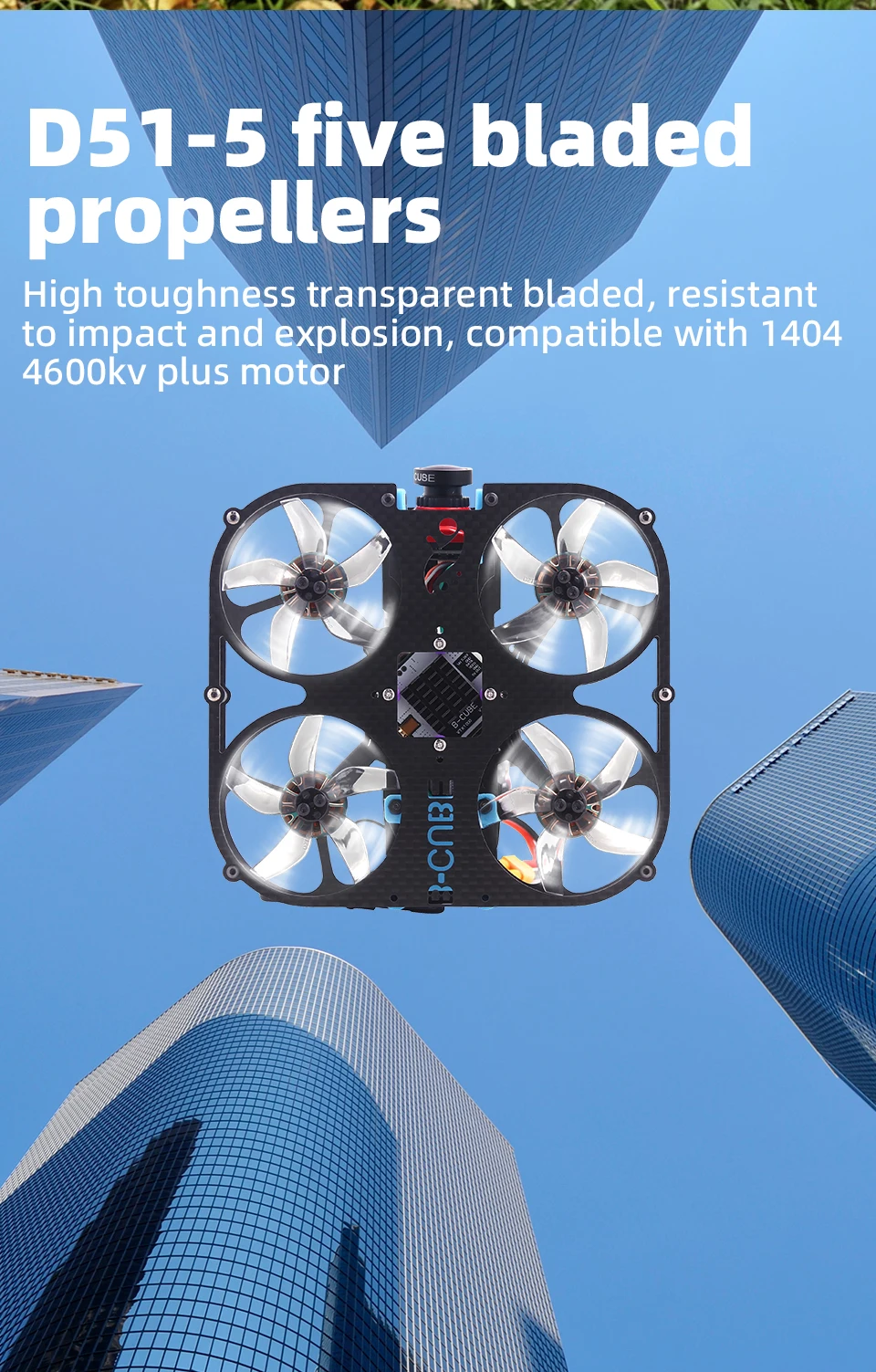

  • Paddle: D51-5 paddle(2INCH paddle )
  • Video transfer: B-CUBE VTX1000

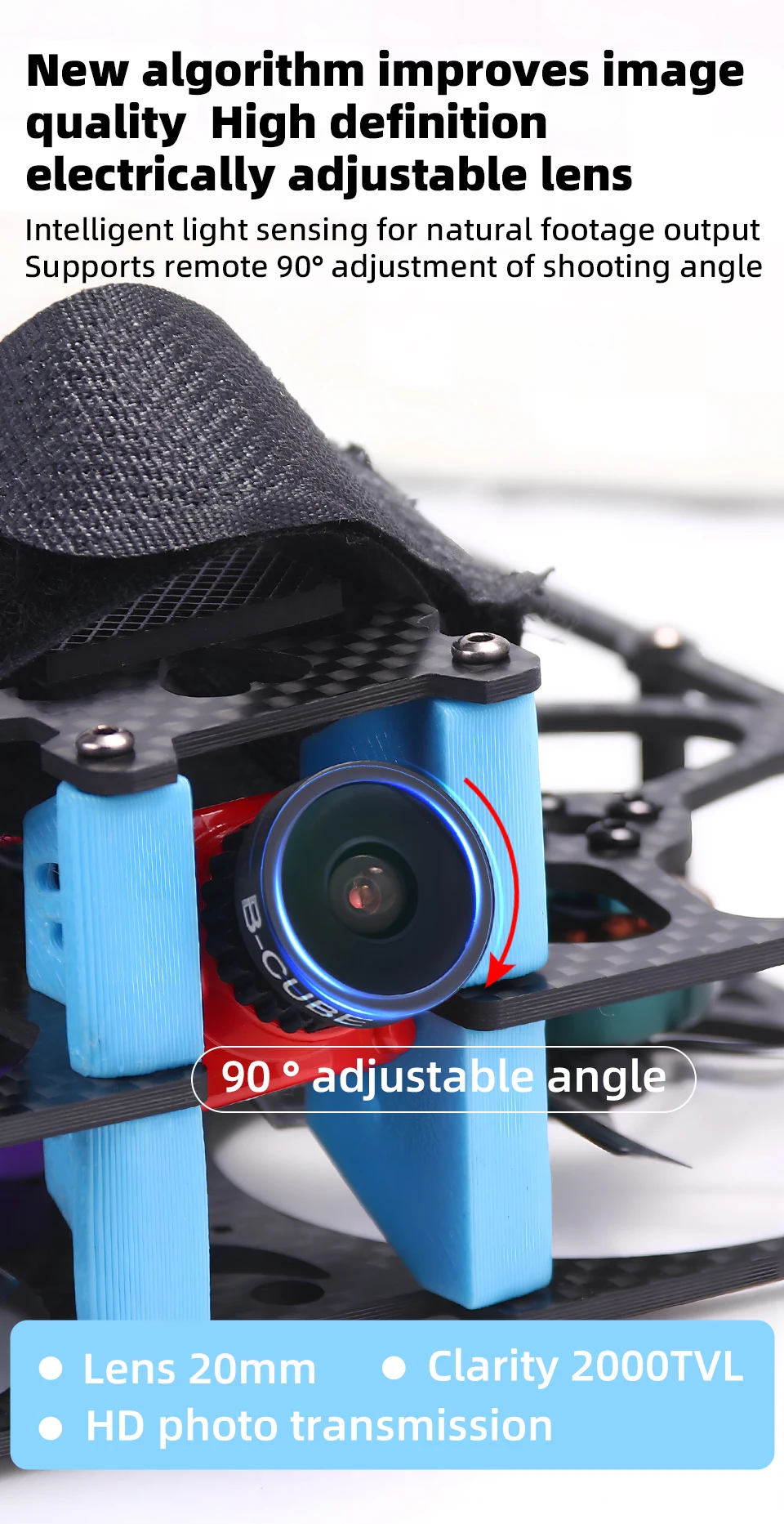

  • Camera:1080P Camera
