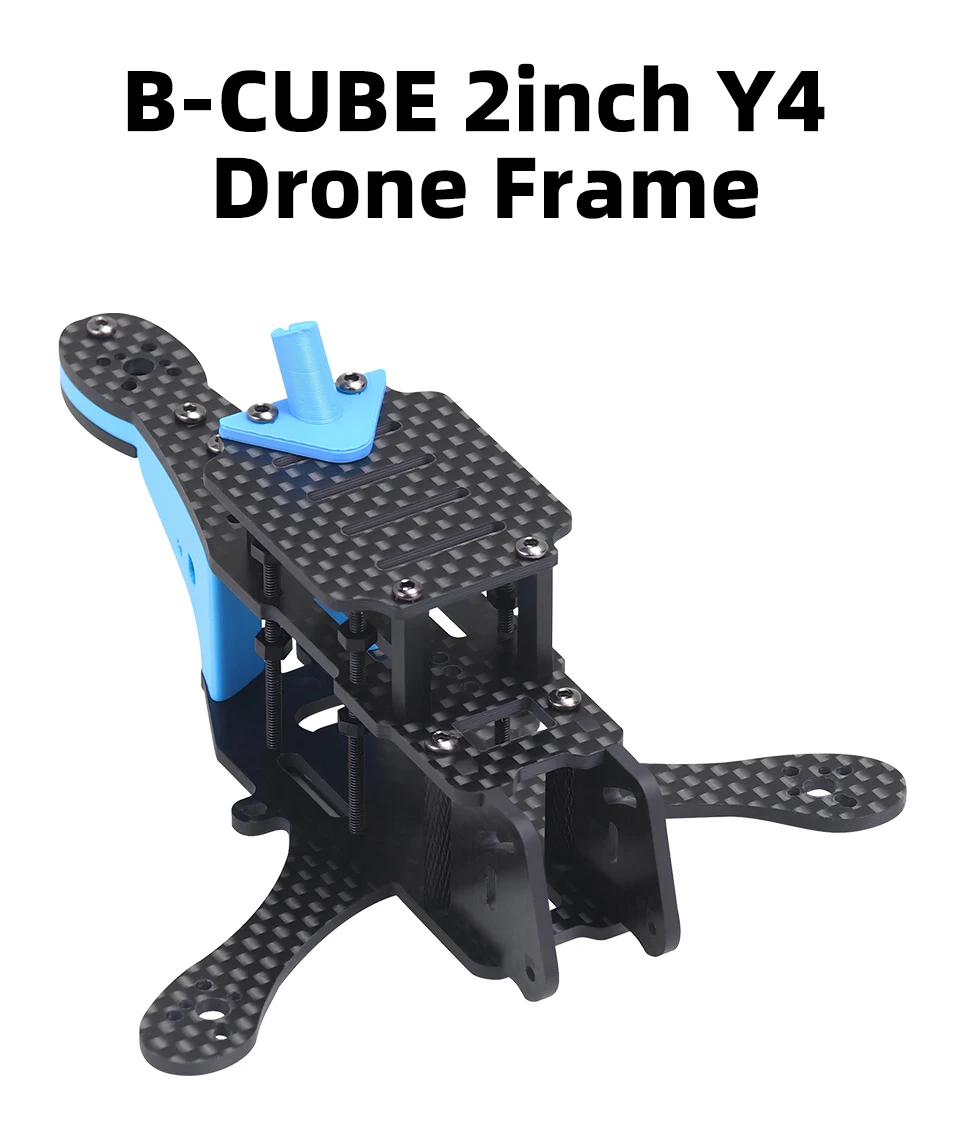

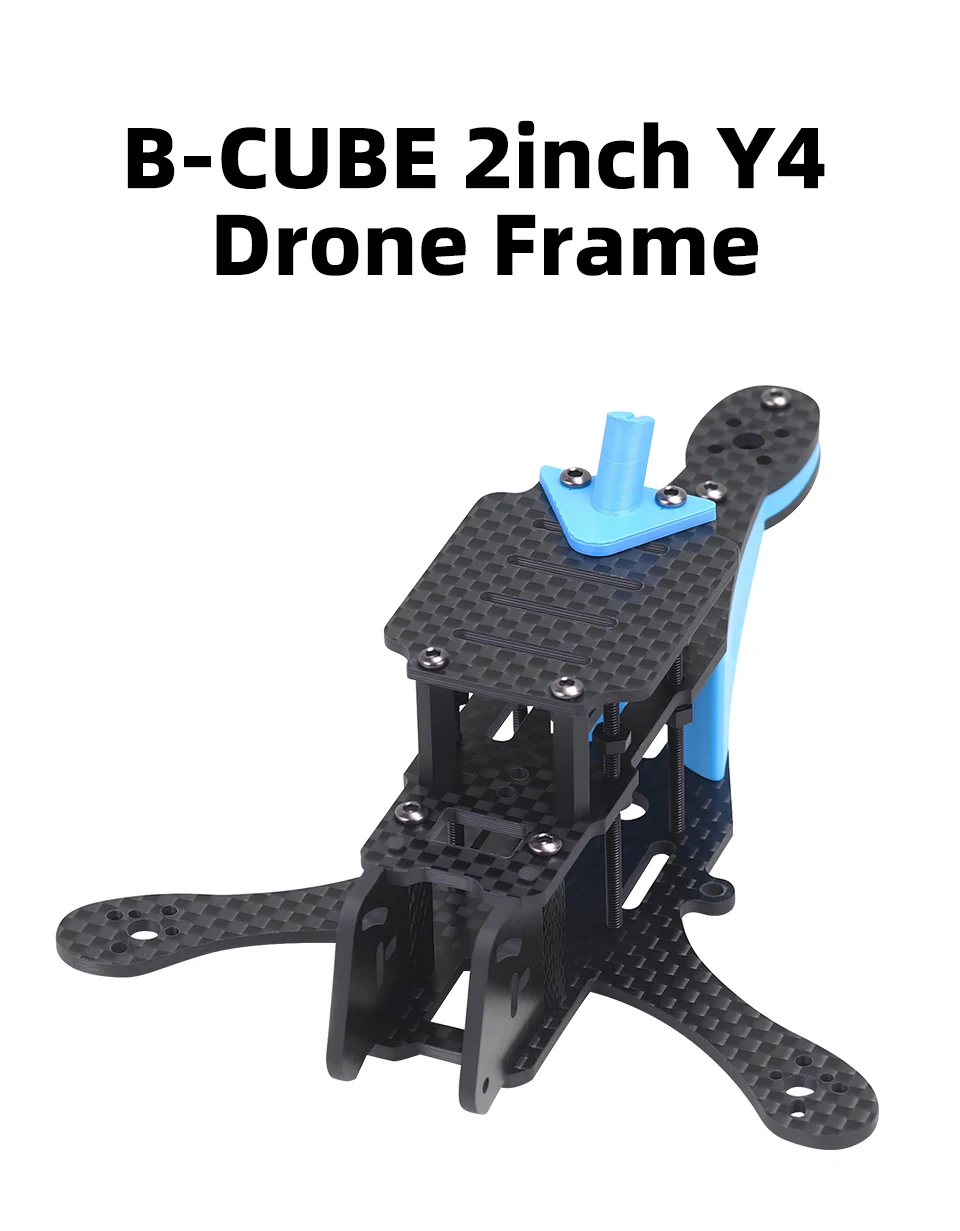

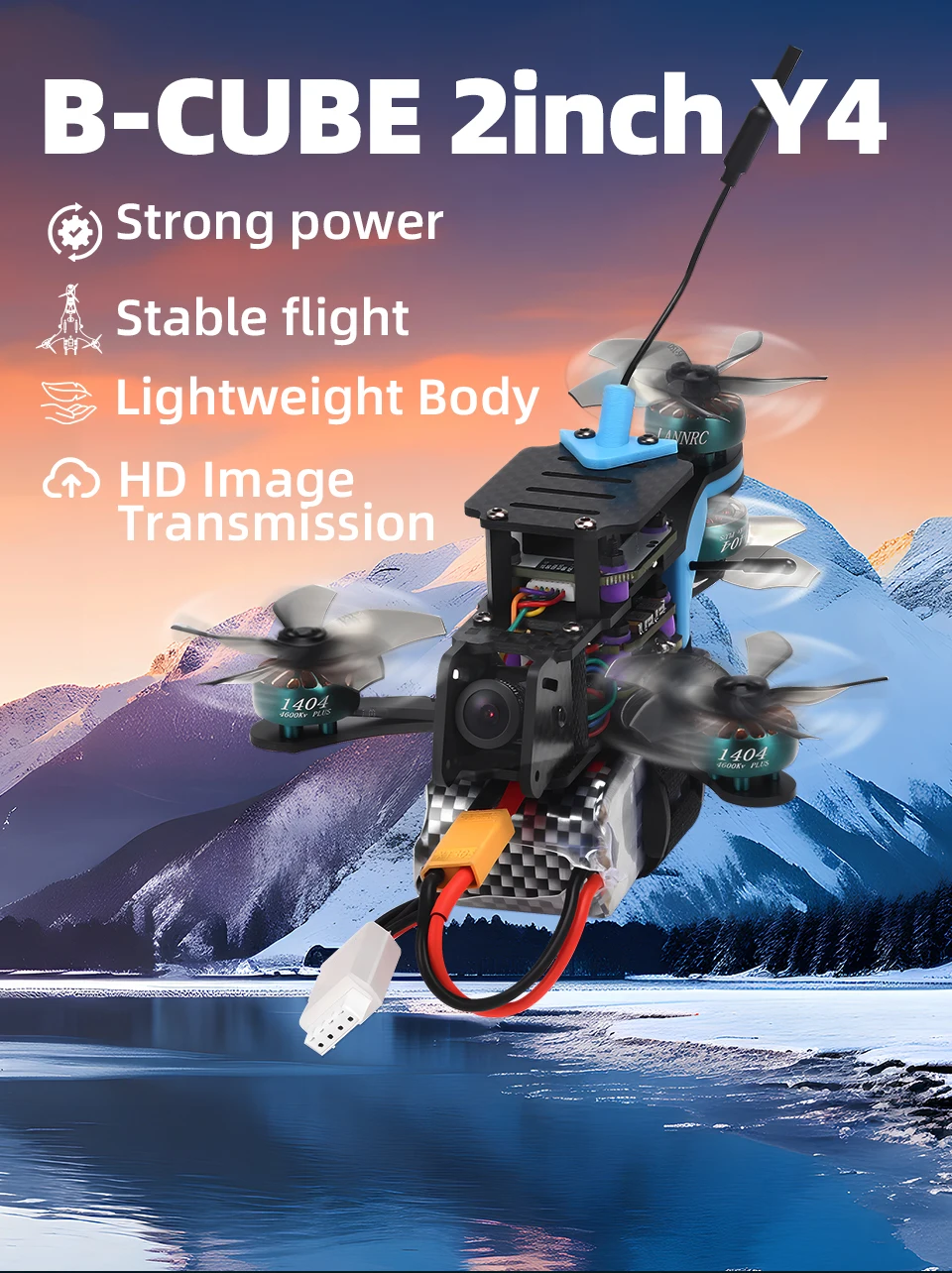

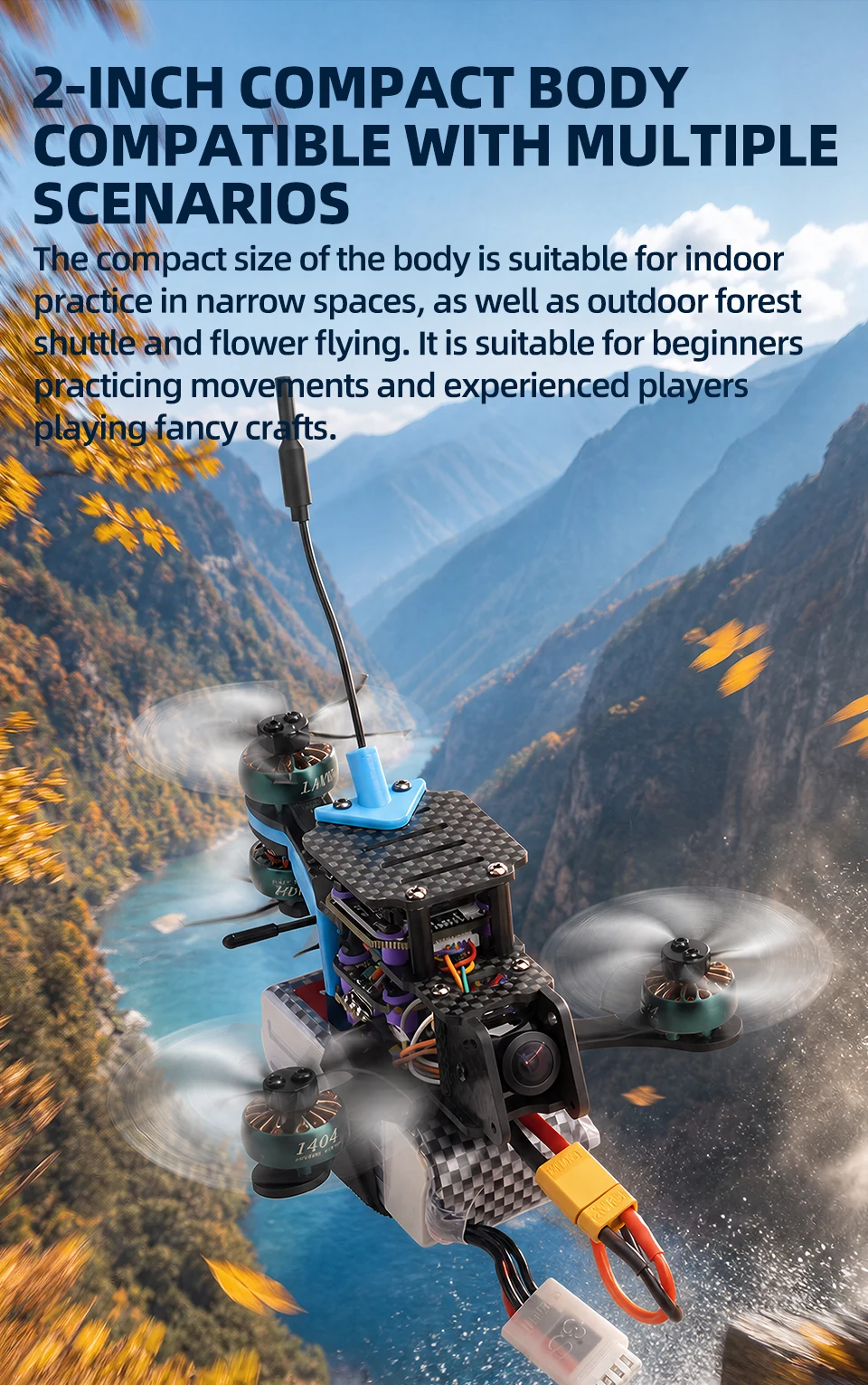

B-CUBE 2inch Y4

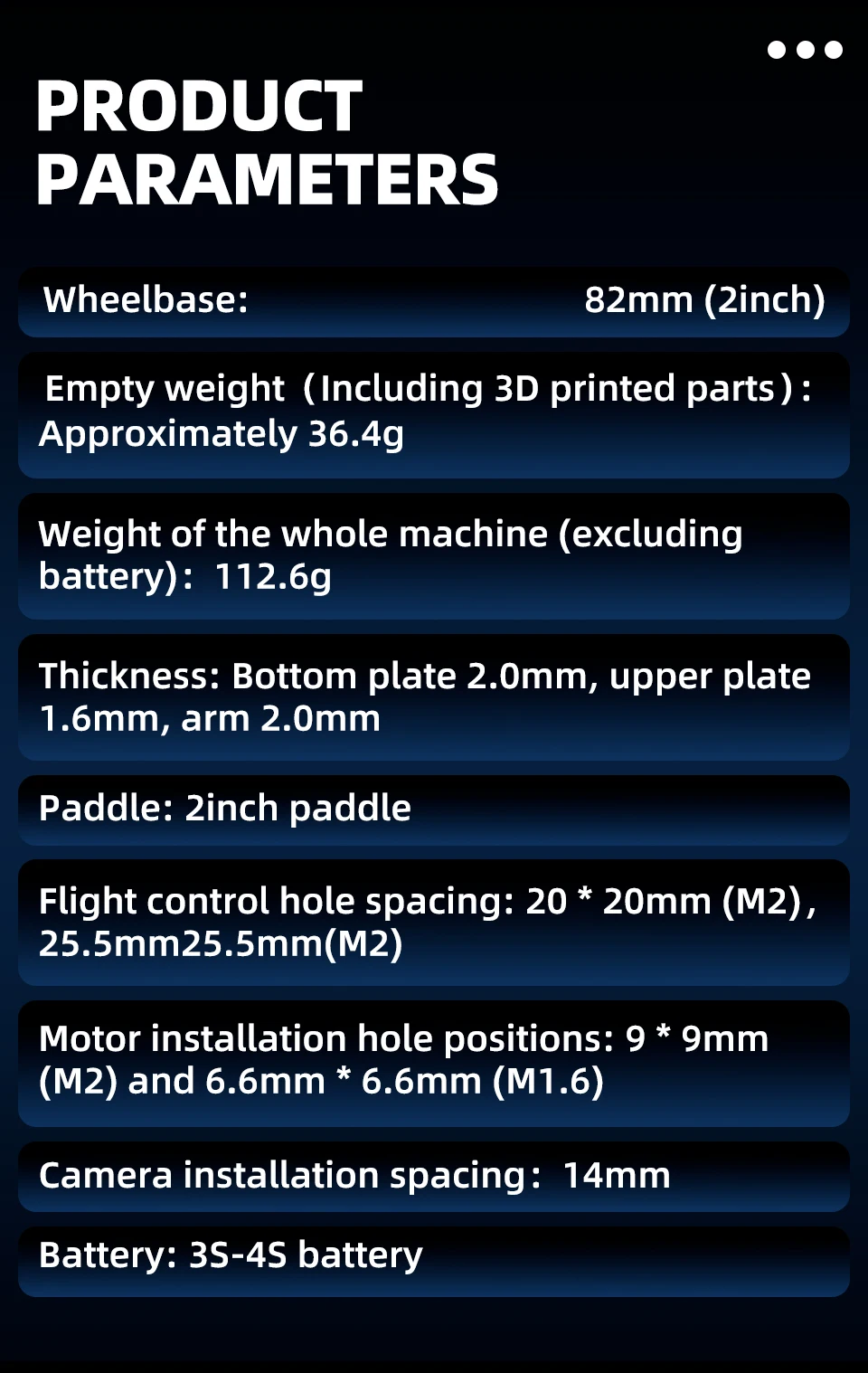

Product parameters:

• Wheelbase: 82mm (2inch)
• Empty weight（Including 3D printed parts）: Approximately 36.4g
• Weight of the whole machine (excluding battery)：112.6g

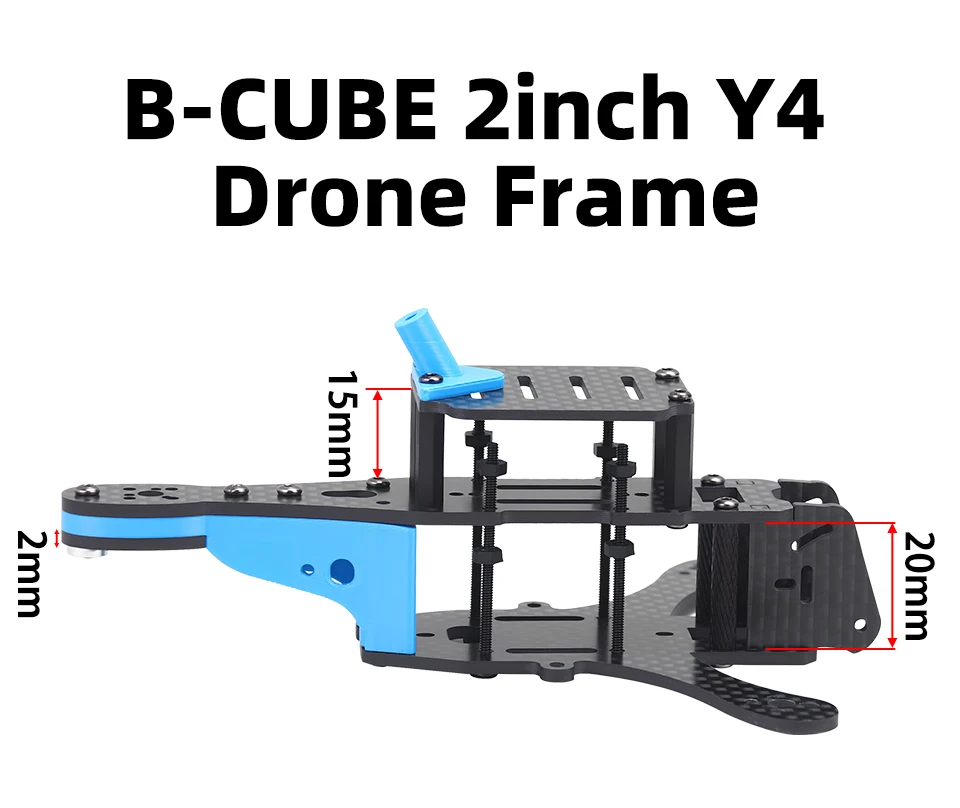

• Thickness: Bottom plate 2.0mm, upper plate 1.6mm, arm 2.0mm
• Paddle: 2inch paddle

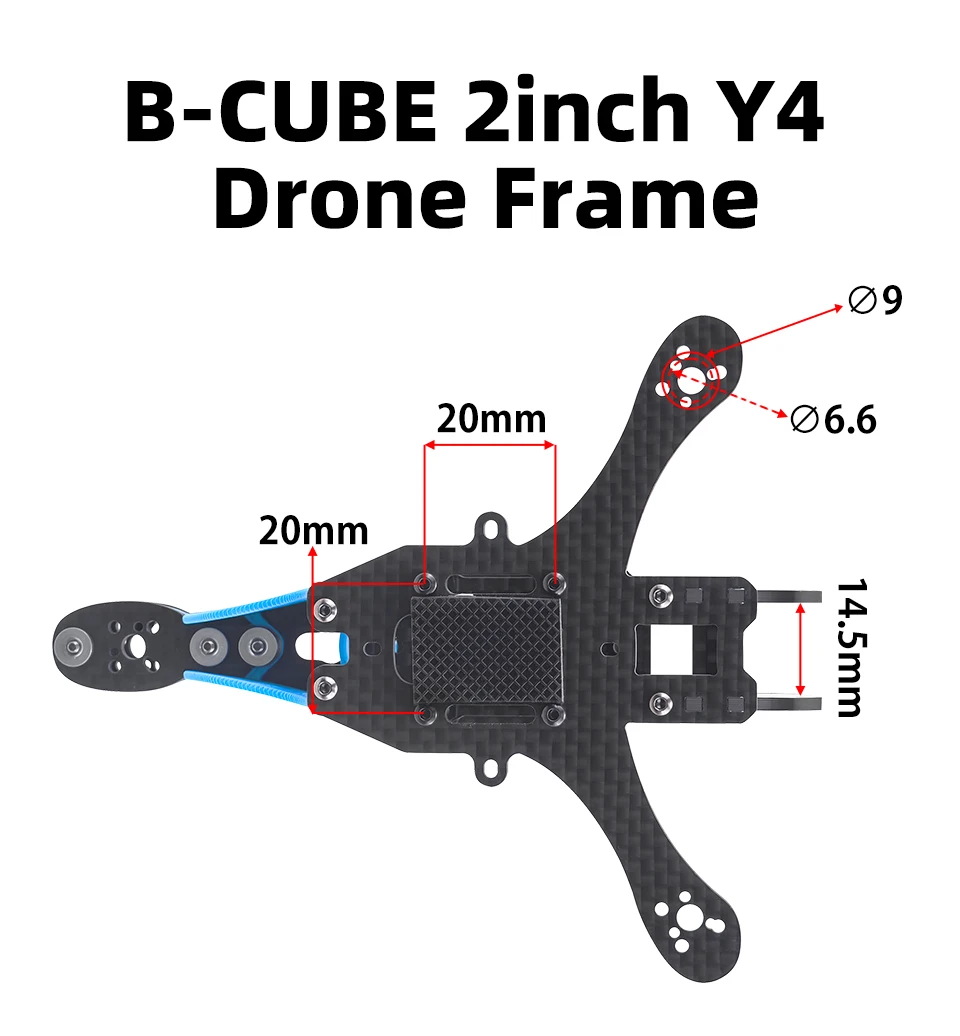

• Flight control hole spacing: 20mm * 20mm (M2)，25.5mm * 25.5mm(M2)
• Motor installation hole positions: 9mm * 9mm (M2) and 6.6mm * 6.6mm (M1.6)
• Camera installation spacing：14mm
• Battery: 3S-4S battery

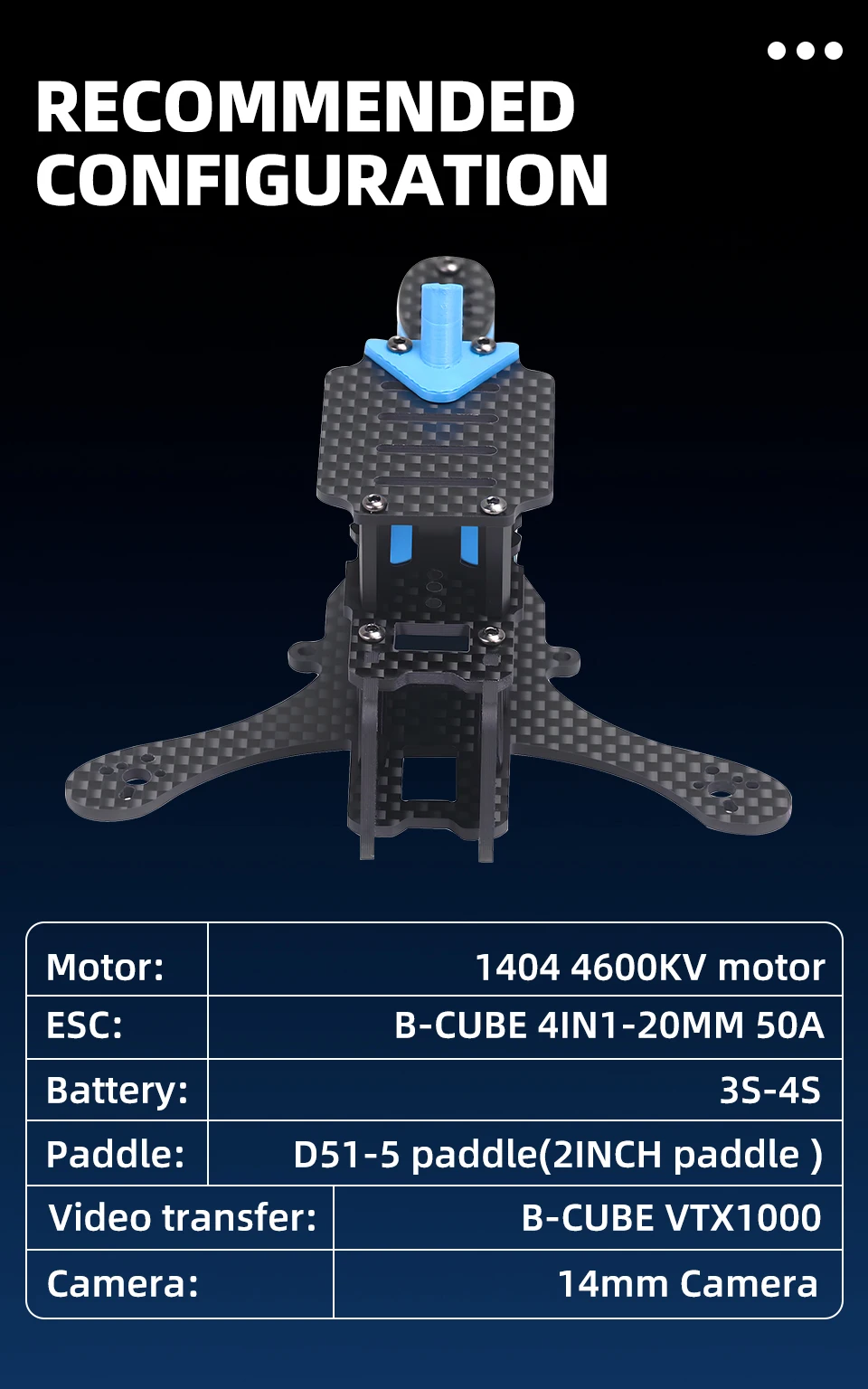

Recommended configuration:

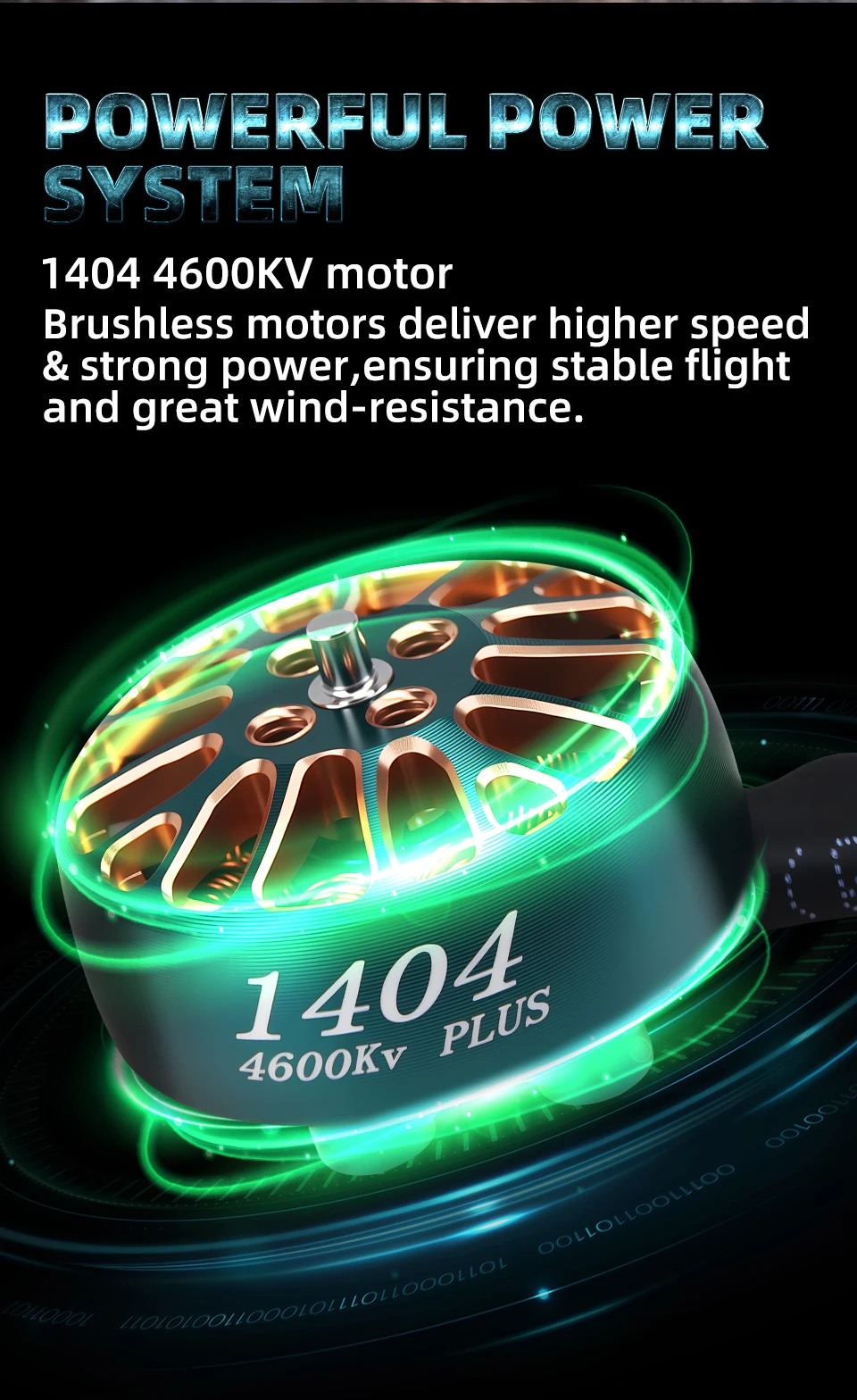

• Motor: 1404 4600KV motor
• ESC: B-CUBE 4IN1-20MM 50A

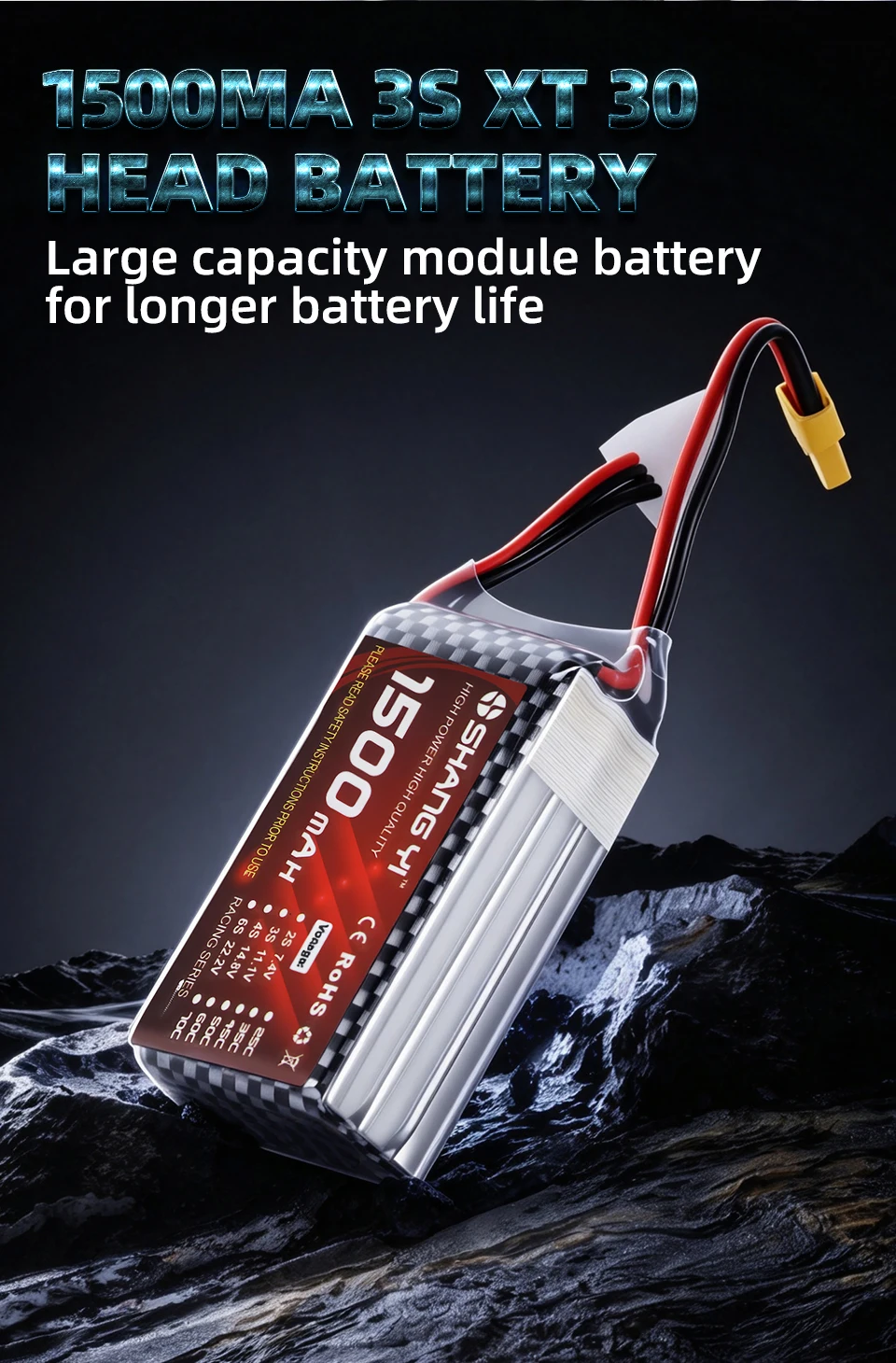

• Battery: 3S-4S

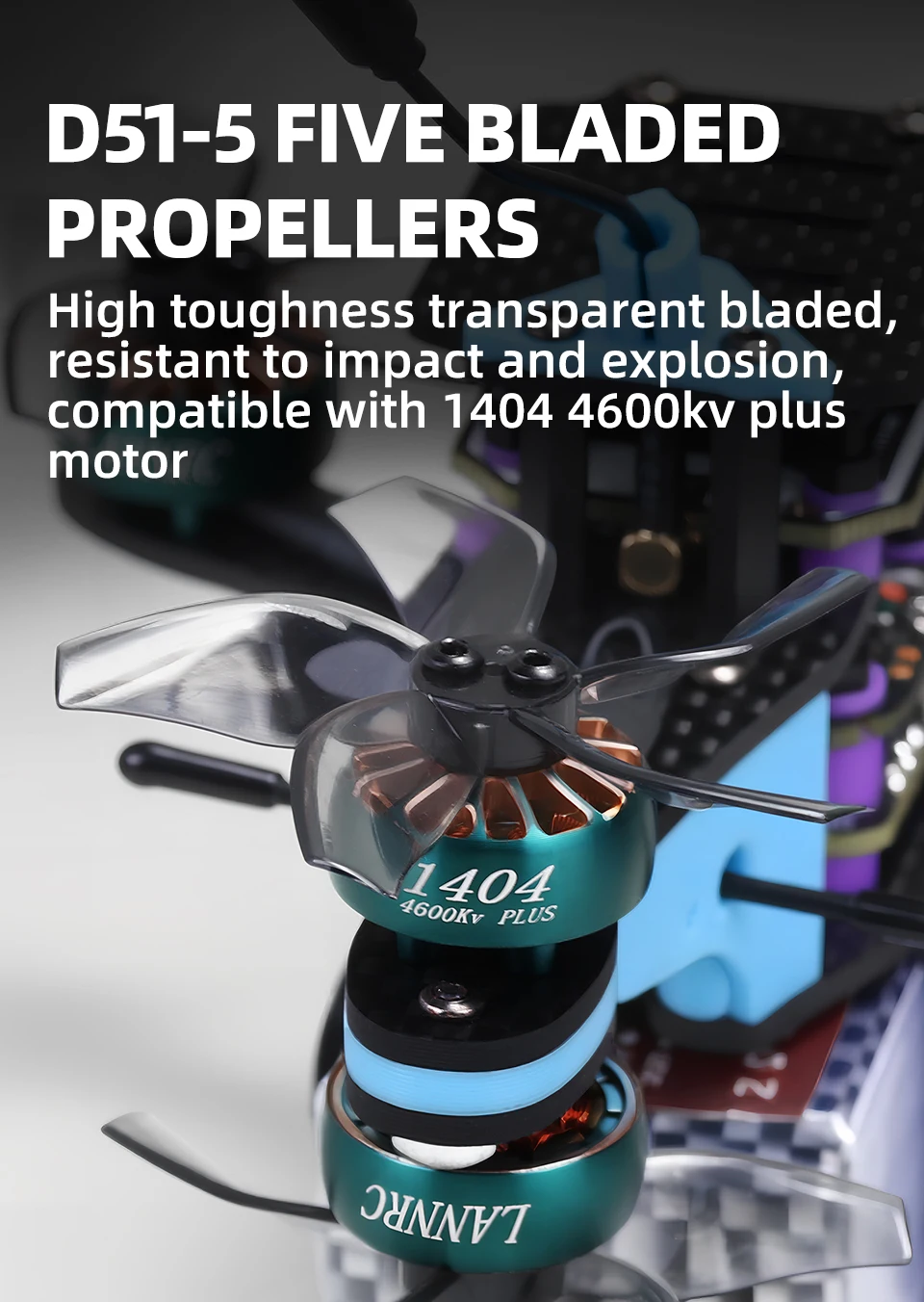

• Paddle: D51-5 paddle(2INCH paddle )
• Video transfer: B-CUBE VTX1000

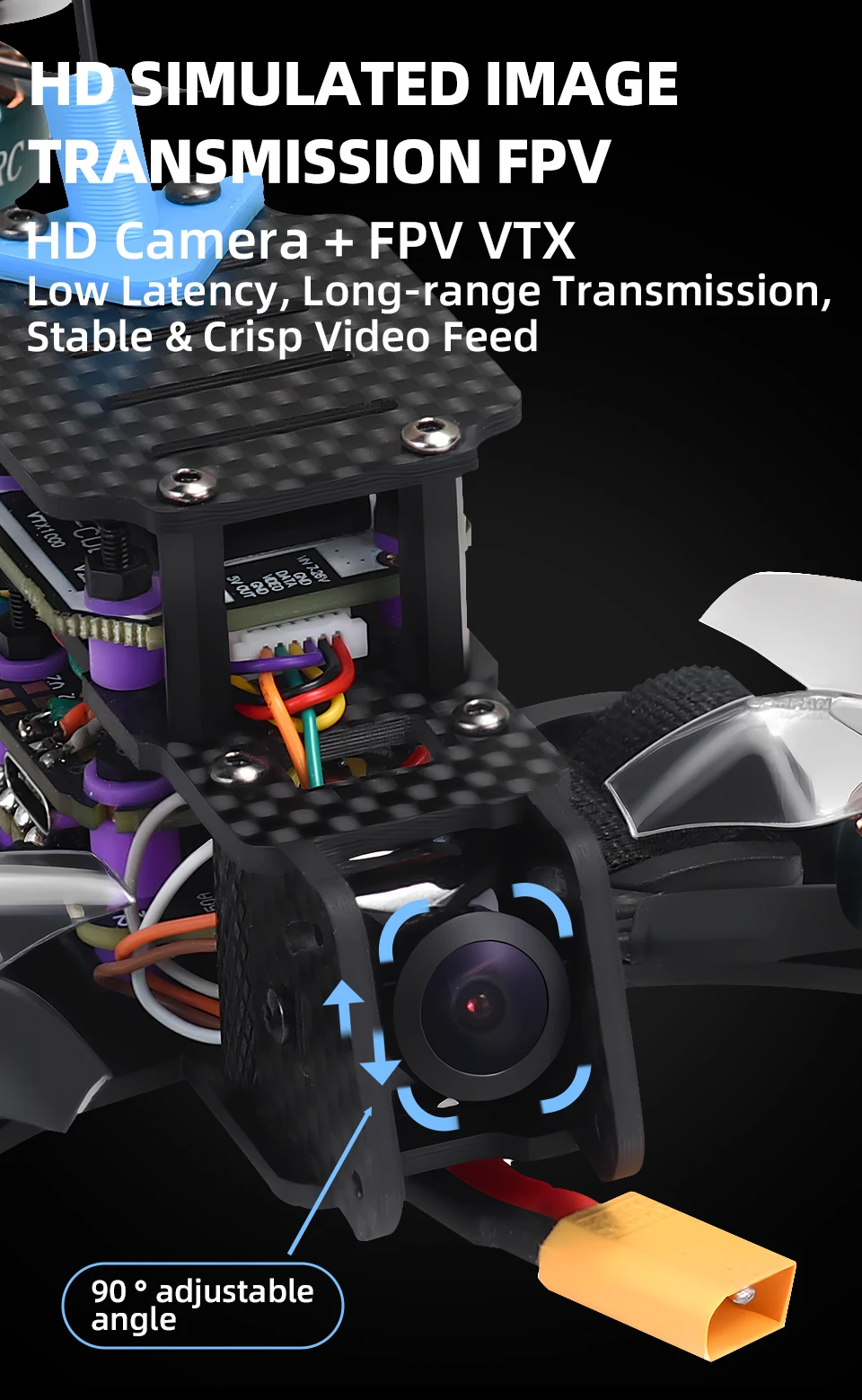

• Camera:14mm Camera

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
