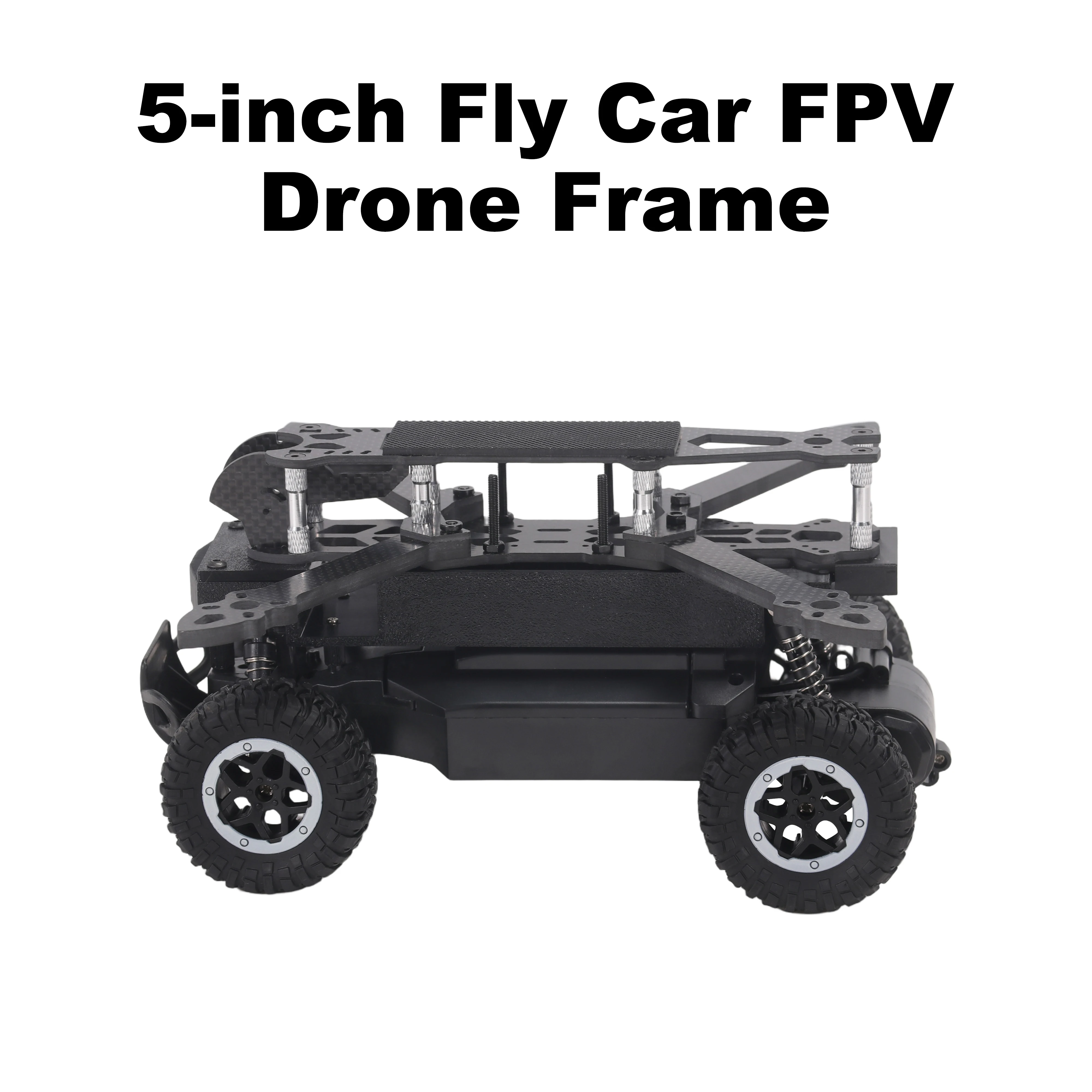

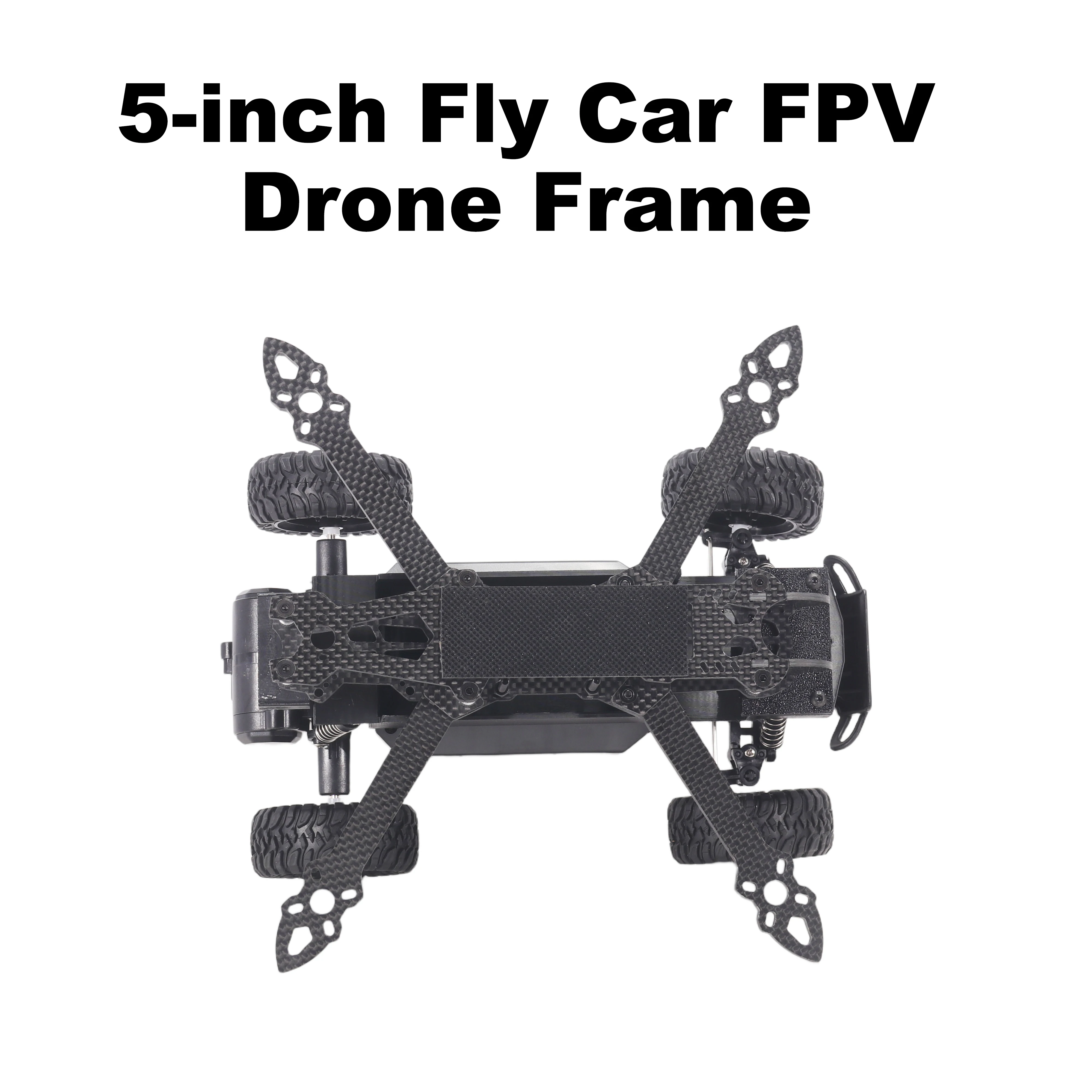

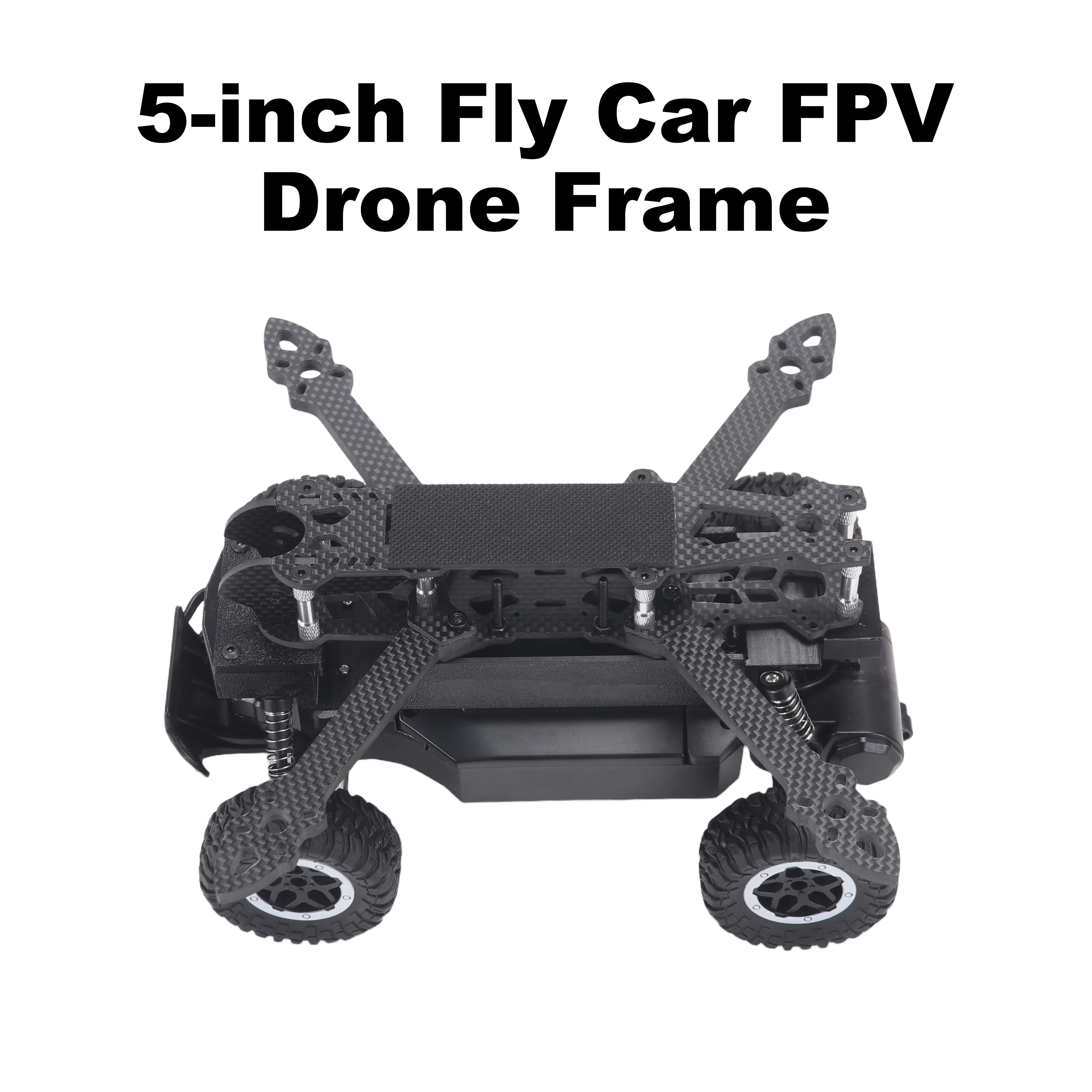

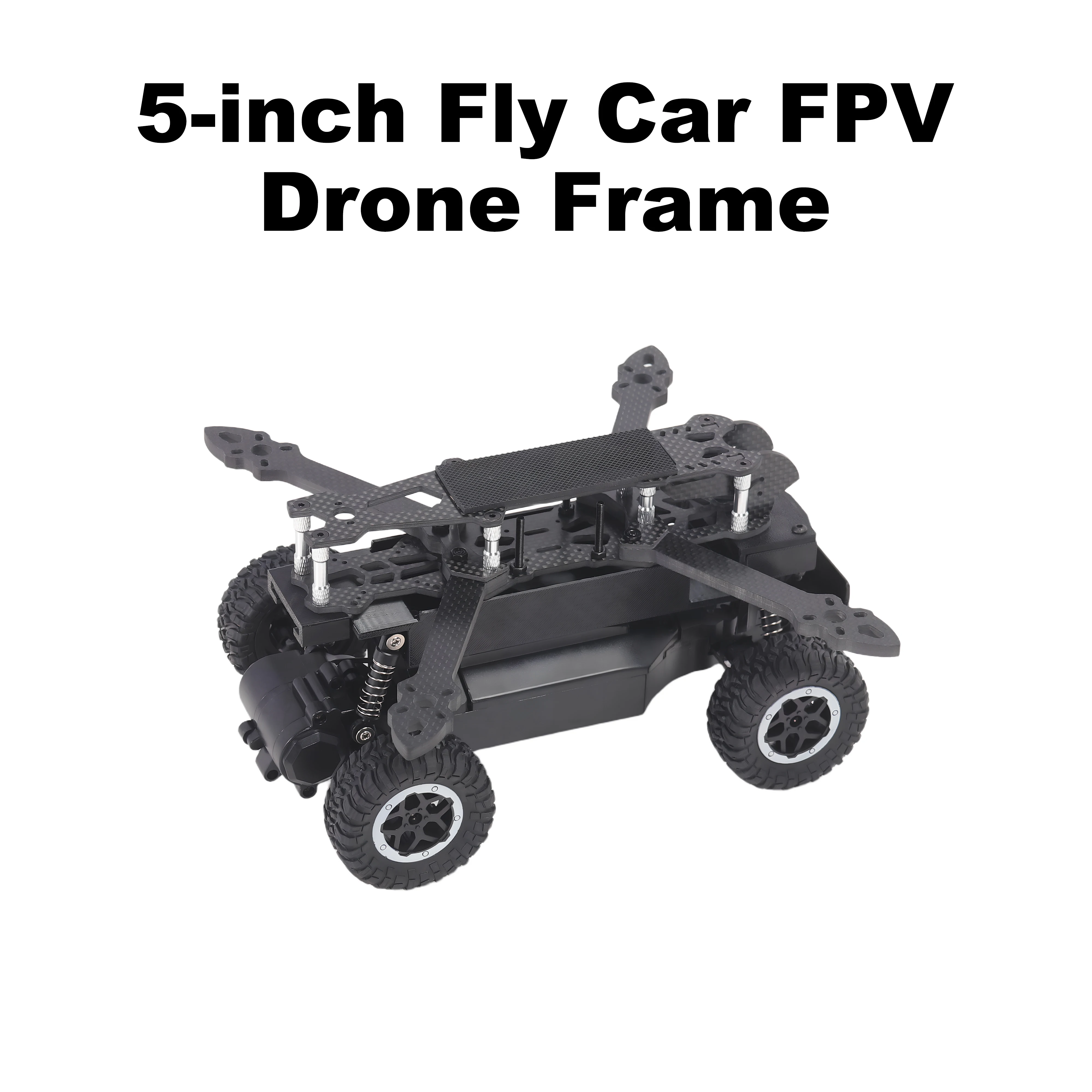

5-inch Fly Car FPV Drone Frame

MARK4 HD 5-inch

• Material: 3K Carbon Fiber
• Frame Type: H

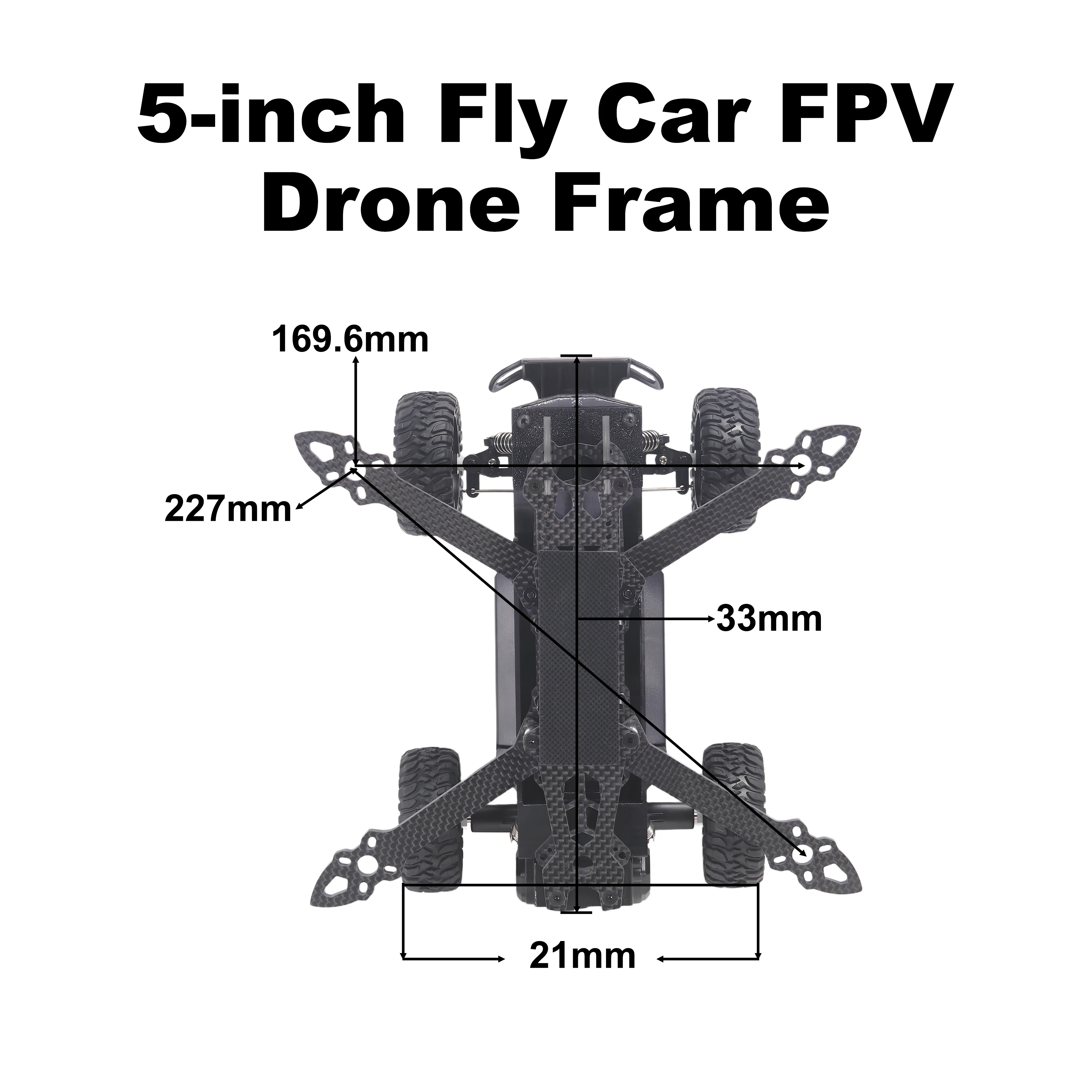

• Wheelbase: 227mm
• Propeller Size: 5-inch
• Size: 273*178mm
• Weight: 120g
• Top Plate: 2.5mm
• Bottom Plate: 2.5mm
• Arm: 5mm
• Camera installation distance: 19mm-20mm
• Image transmission installation hole distance: compatible 30.5mm/25.5mm/20mm
• Flight control installation hole distance: compatible 30.5mm/20mm

Recommended Configuration:

• Flight control: F4/F7/H7
• Motor: 2207/2305/2306/2407
• ESC: 45A-65A
• Battery: 6S 1500mAh

Fly Car

Specification:

• Model: Fly Car
• Outer Dimensions: 33x21x13cm
  Clearance of the chassis from the ground: 3.5cm

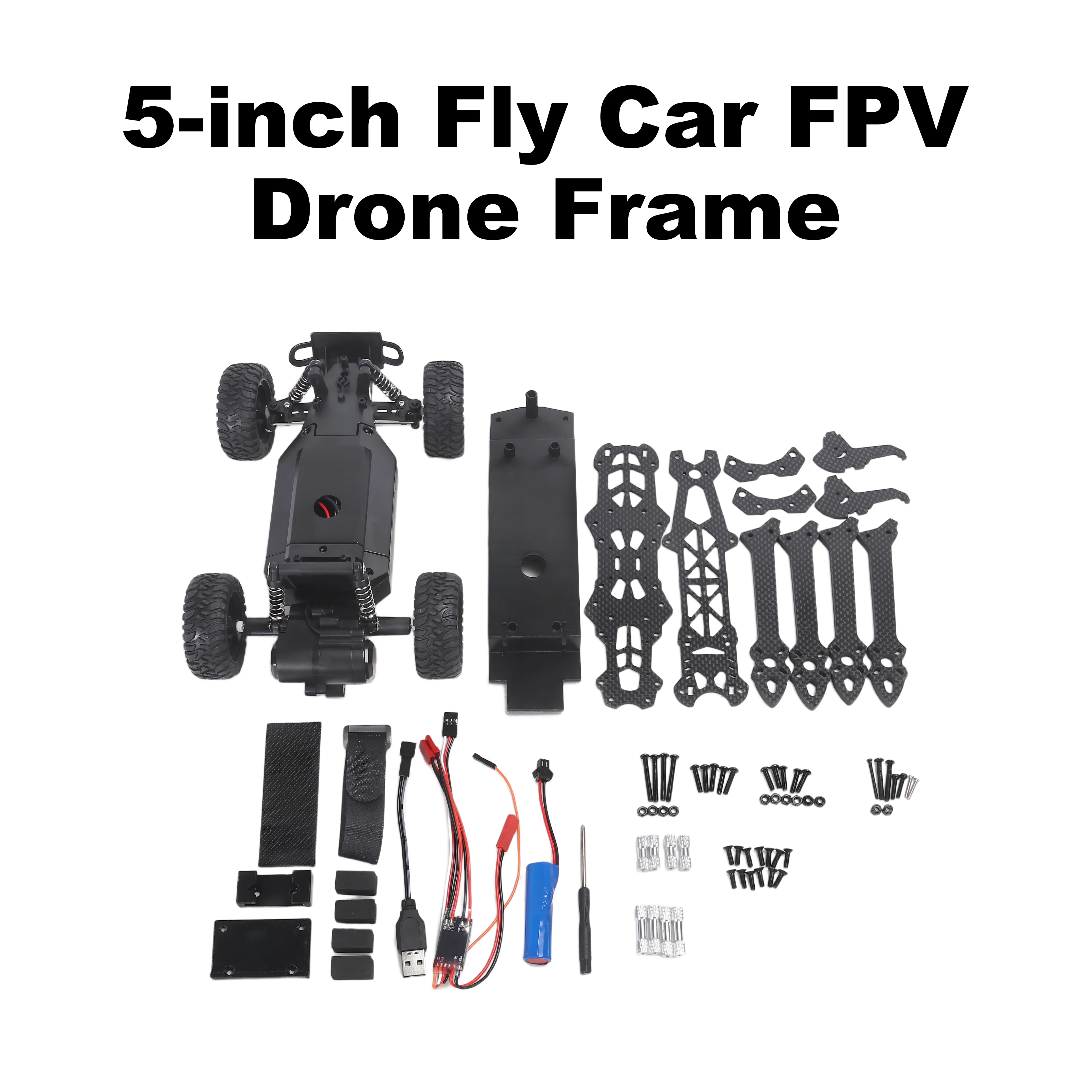

Package include:

• MAK4 5inch Carbon Fiber Frame X1
• Fly Car Board X1
• 500MA battery X2
• Bidirectional 3A 1S Brushed ESC X1
• Several screws and aluminum column
