MARK4 V2

MARK4 V2 8/9/10inch

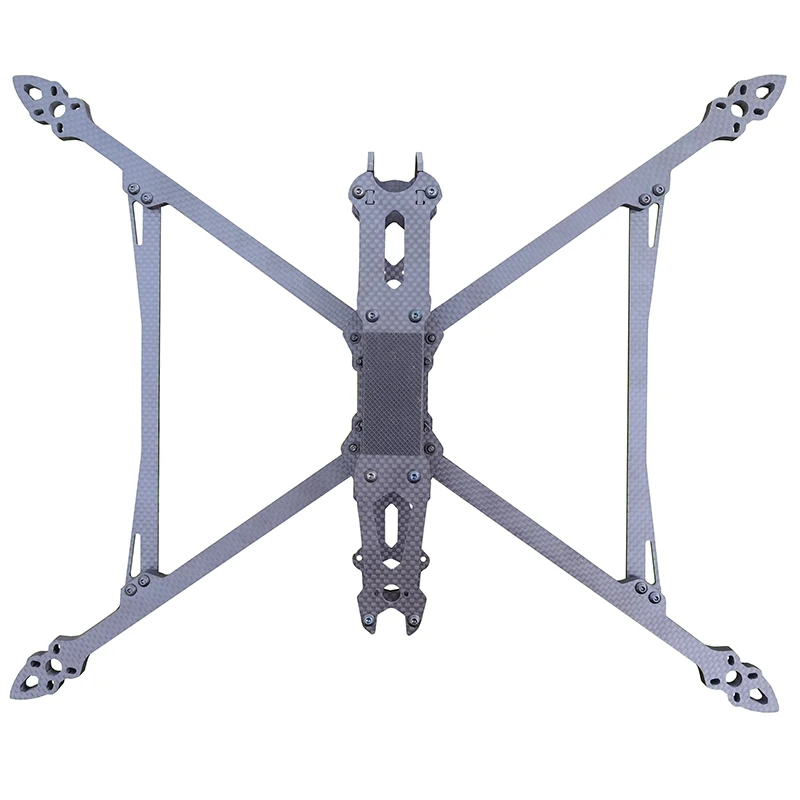

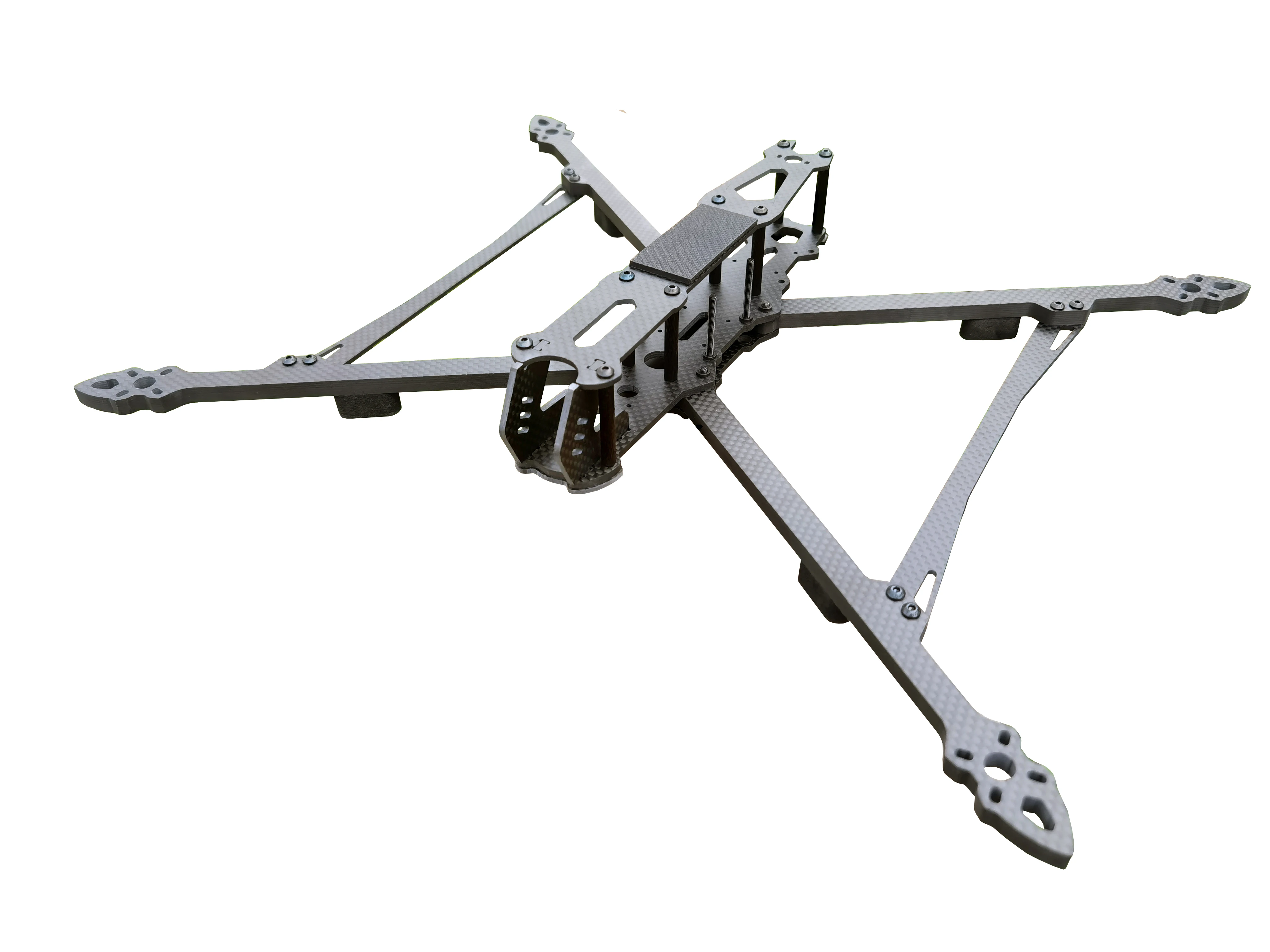

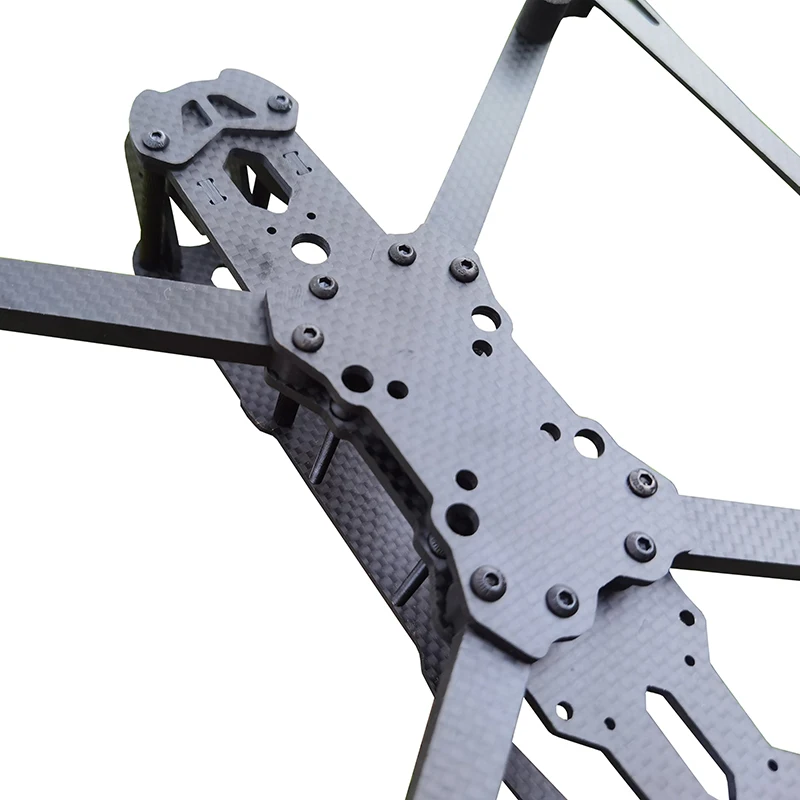

3K Carbon Fiber Frame MARK4 V2 8inch 367mm 9inch 387mm 10inch 427mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Description:

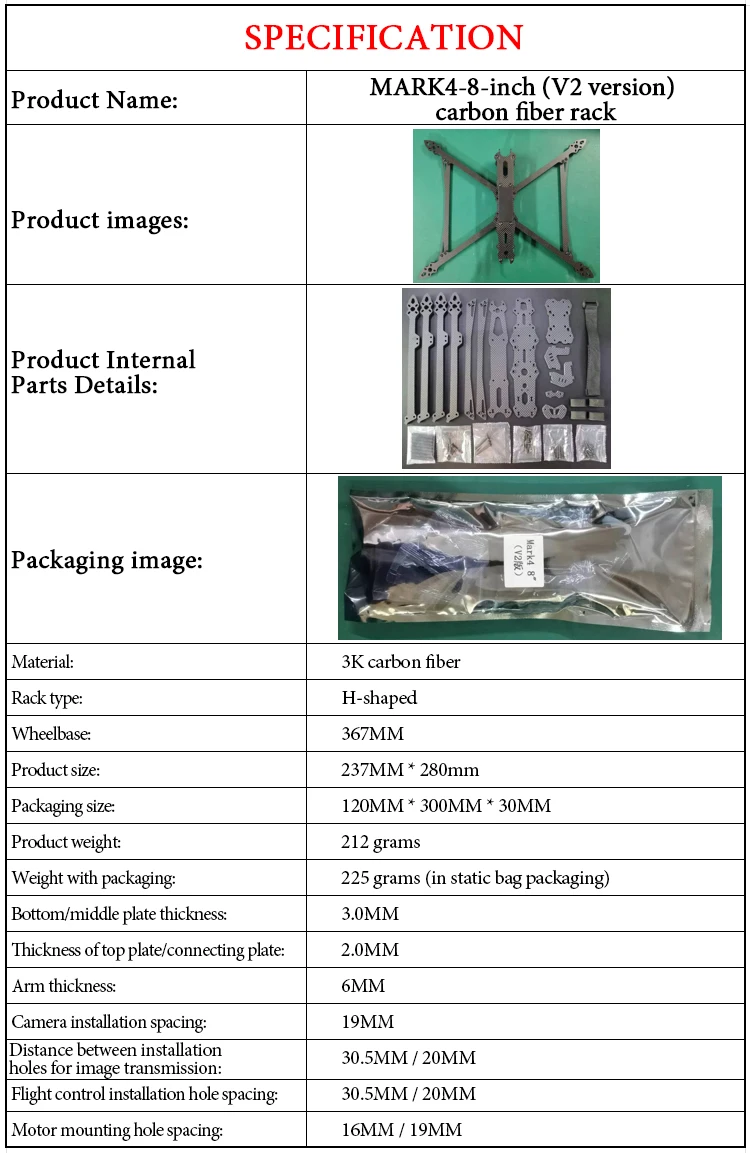

Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm

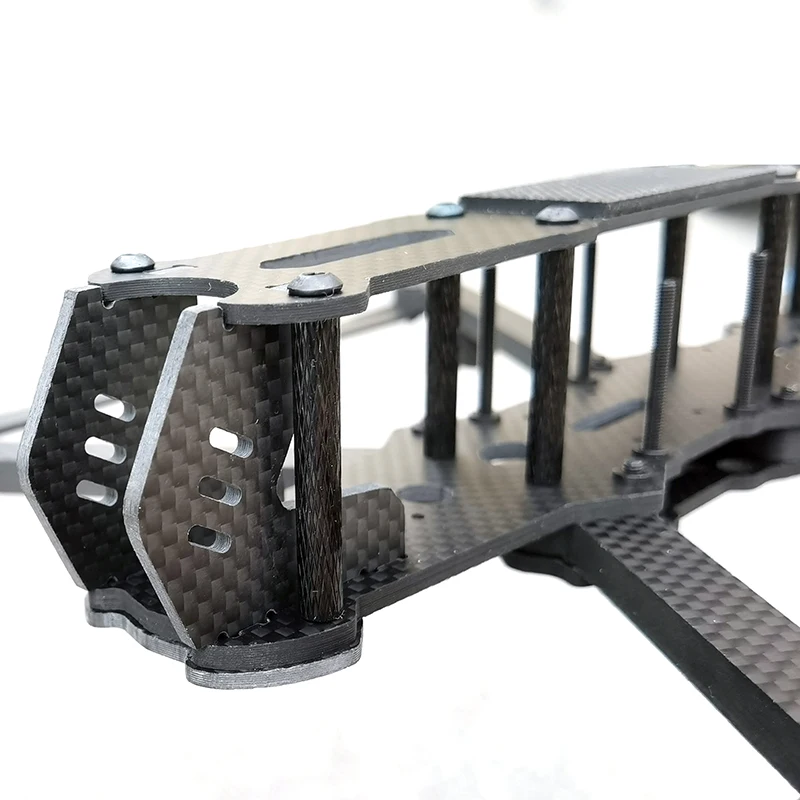

Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

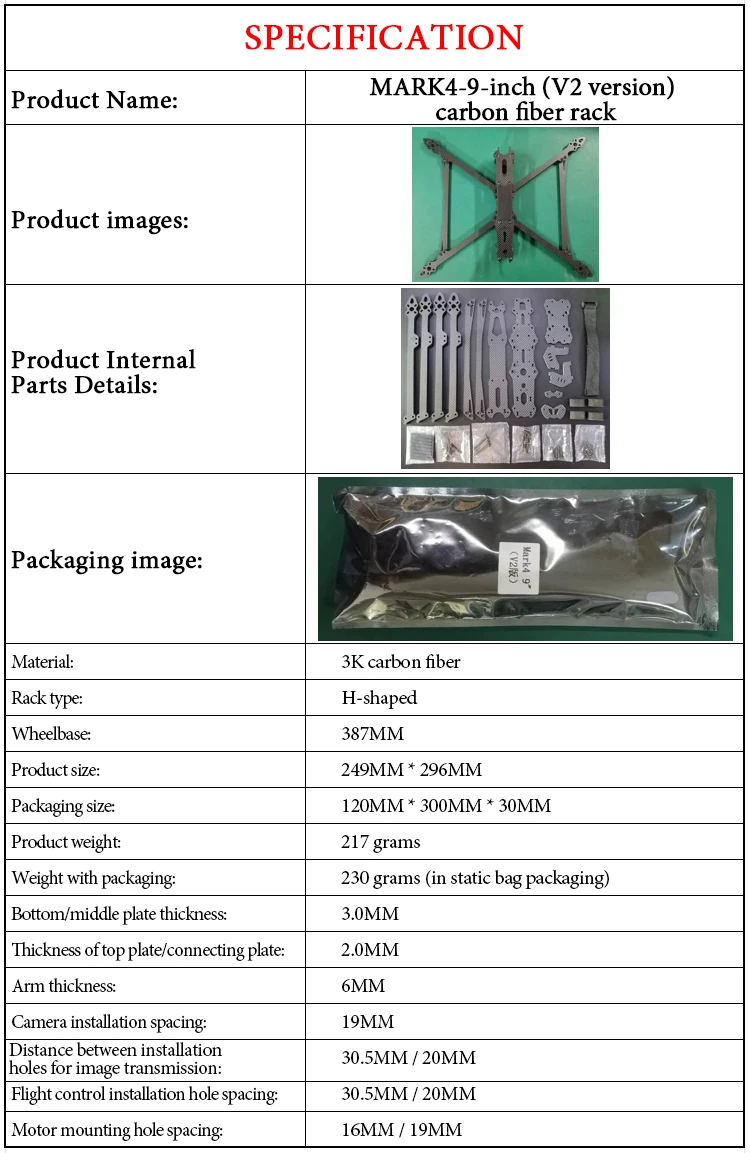

Model: MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

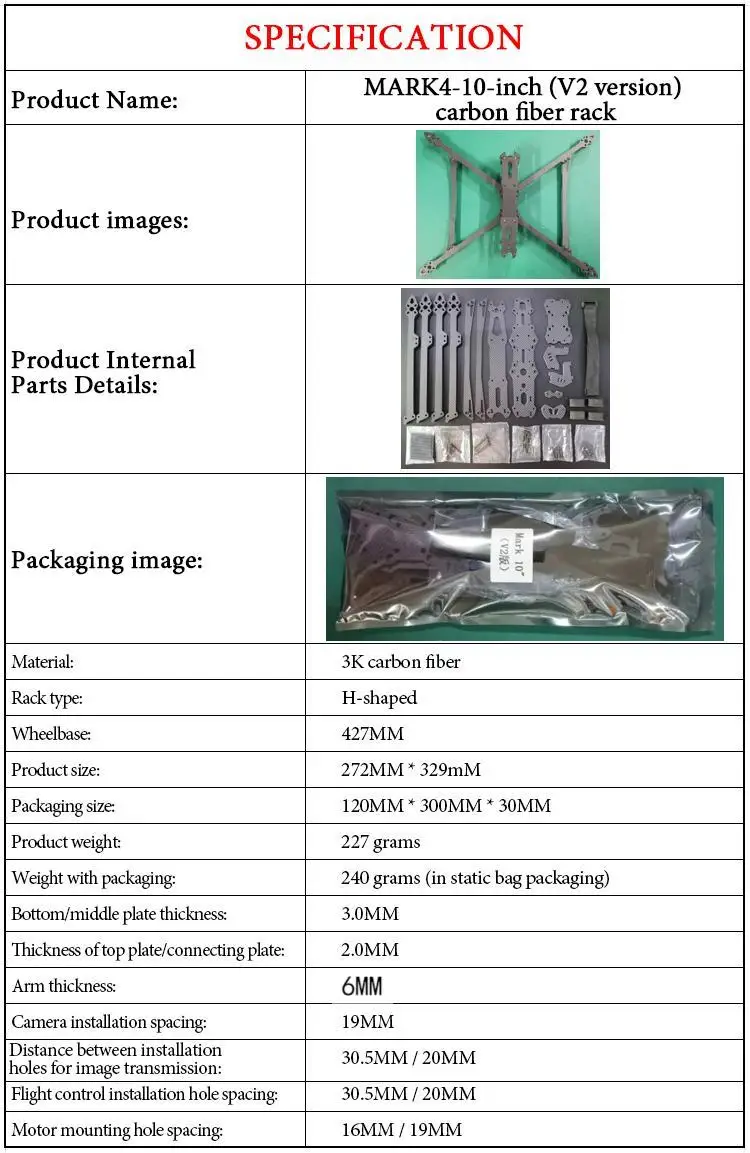

Model: MAK4 V2 10inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

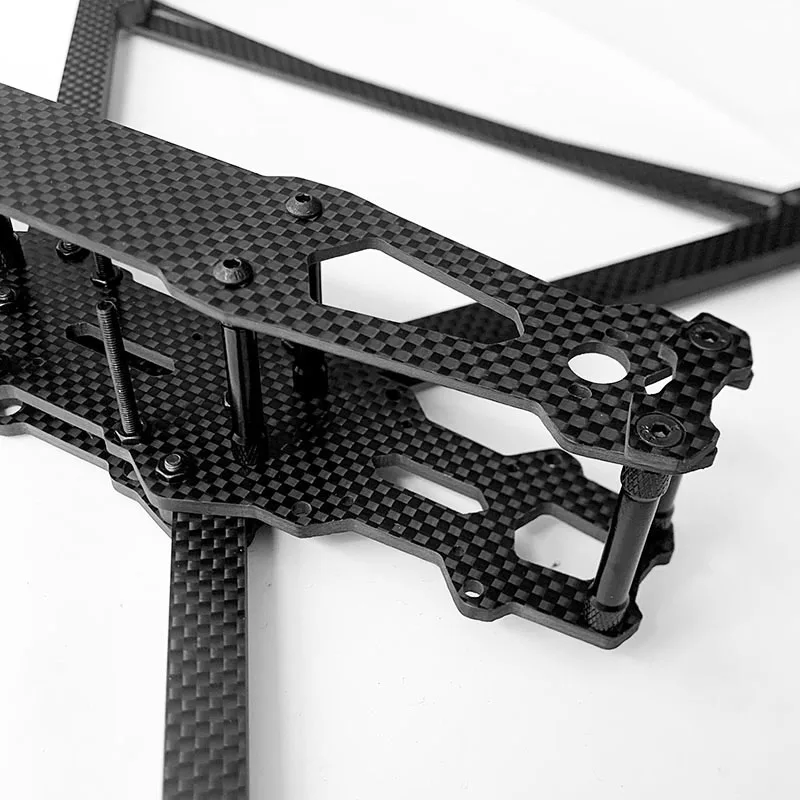

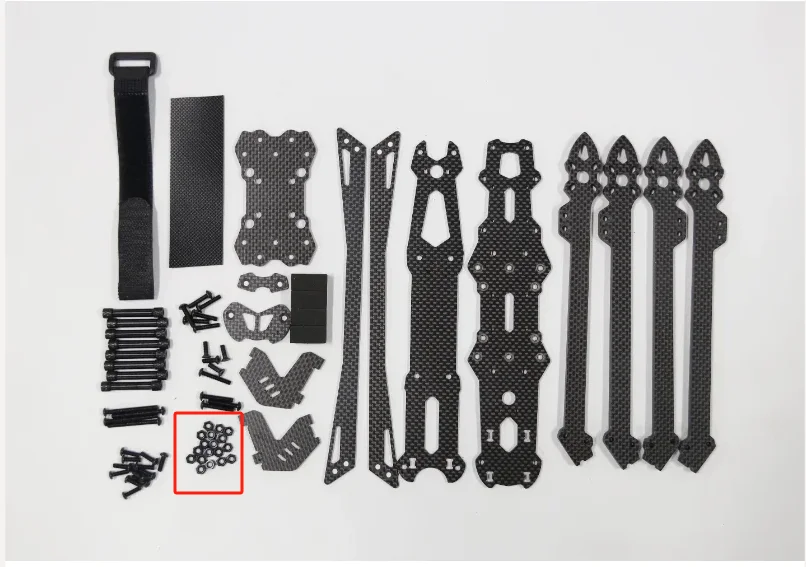

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.
