Rocket Plus 5inch FPV Drone

Rocket Plus 5inch FPV Drone

dronecode

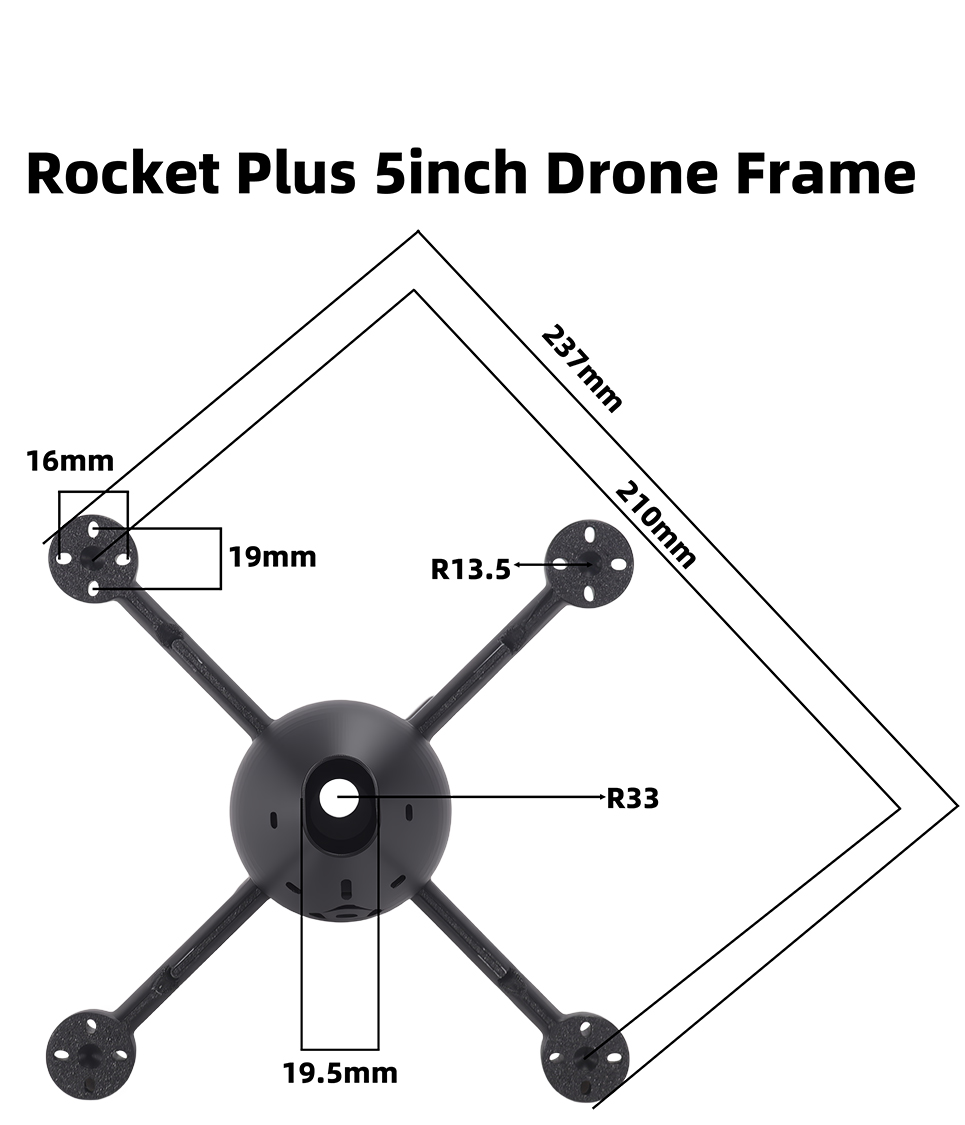

Product parameters:

  • Wheelbase:210mm (5inch)
  • Shell material: PLA 3D printed
  • Collor: Black/Origan

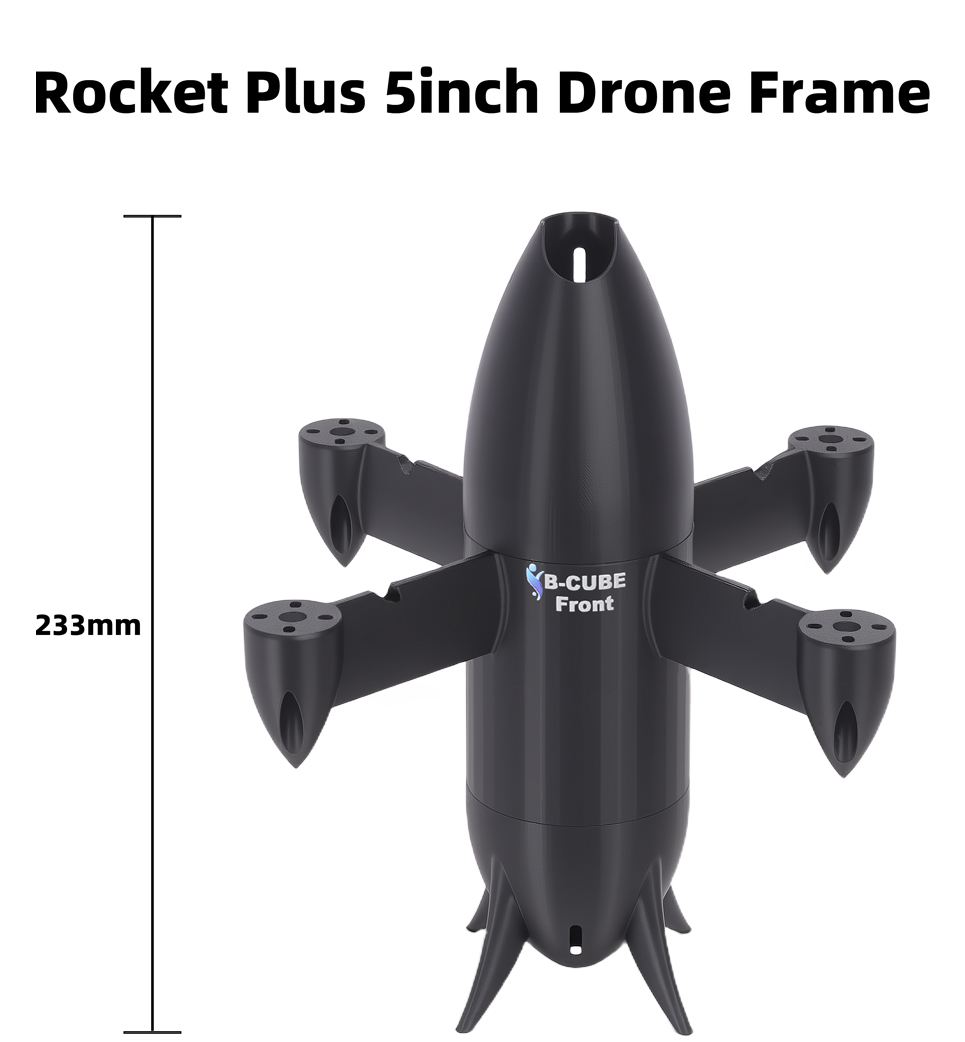

  • Rocket Height: 240MM
  • Shell weight（Empty weight）: Approximately 190g
  • Weight of the whole machine (excluding battery)：424g
  • Thickness: Center plate 4.0mm,
  • Thickness of the motor mounting hole positions： 4.0mm
  • Paddle: 5inch paddle
  • Flight control hole spacing: 20MM*20MM (M3), 25MM*25MM(M3),30MM*30MM (M3)
  • Video transfer hole spacing: 30*30MM (M3)
  • Motor installation hole positions: 16mm * 16mm (M3) 19mm19mm(M3)
    GPS Mounting Space：20mm    20mm
    Camera Mounting Hole Spacing: 20mm
  • Battery: 4S 4000mAh

Recommended configuration:

  • Motor: 2205 2300KV motor
  • ESC: B-CUBE 4IN1 45A
  • GPS:MINI M10 GPS
  • Battery: 4S 4000mAh
  • Paddle:D4-5 paddle
  • Camera：1080p Camera
  • Video transfer: B-CUBE VTX1000
