Product parameters:

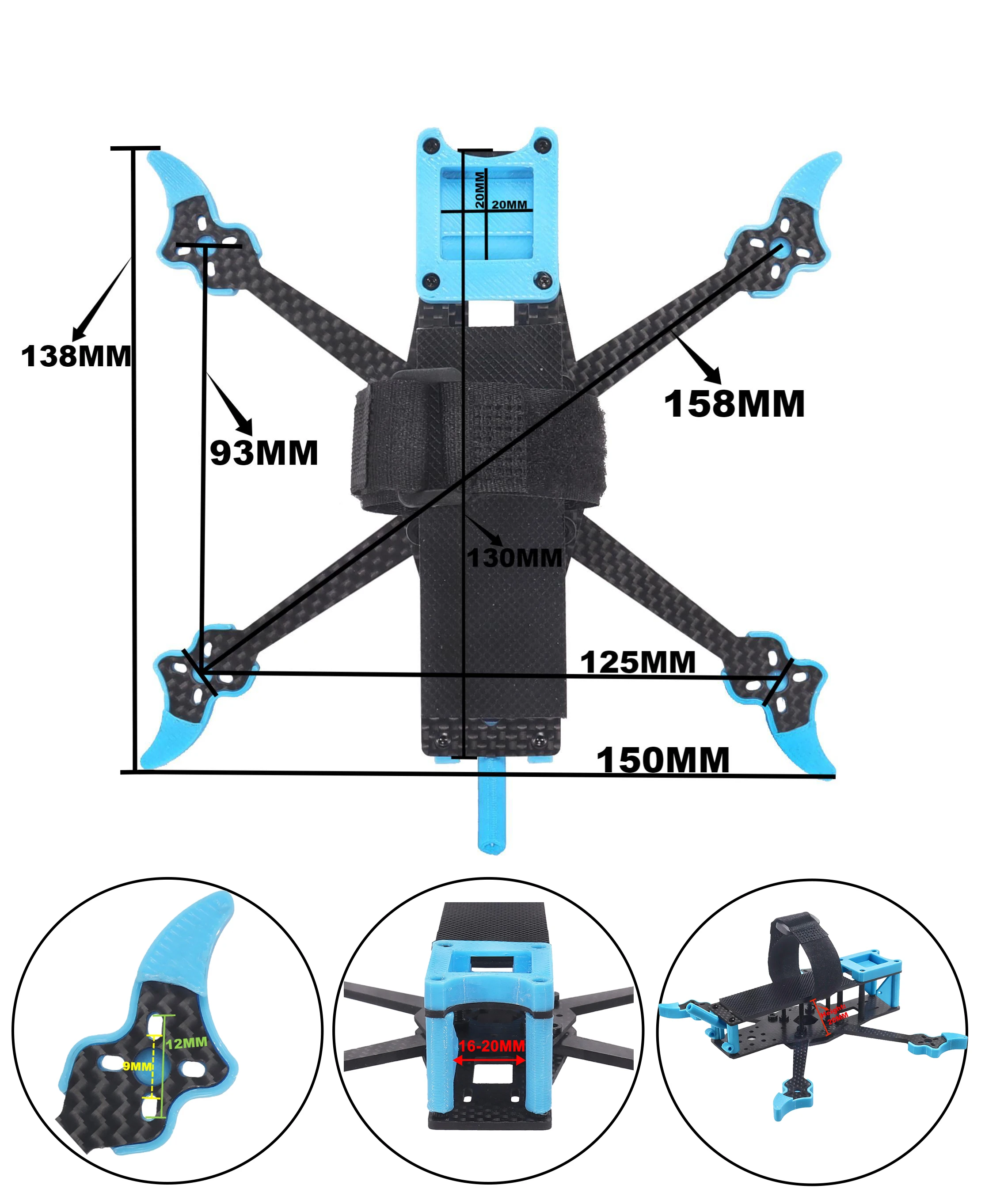

• Wheelbase: 158mm (3.5inch)
• Empty weight（Including 3D printed parts）: Approximately 73g
• Weight of the whole machine (excluding battery)：186g
• Thickness: Bottom plate 2.0mm, upper plate 1.6mm, arm 3.0mm
• Paddle: 2.5-3.5inch paddle

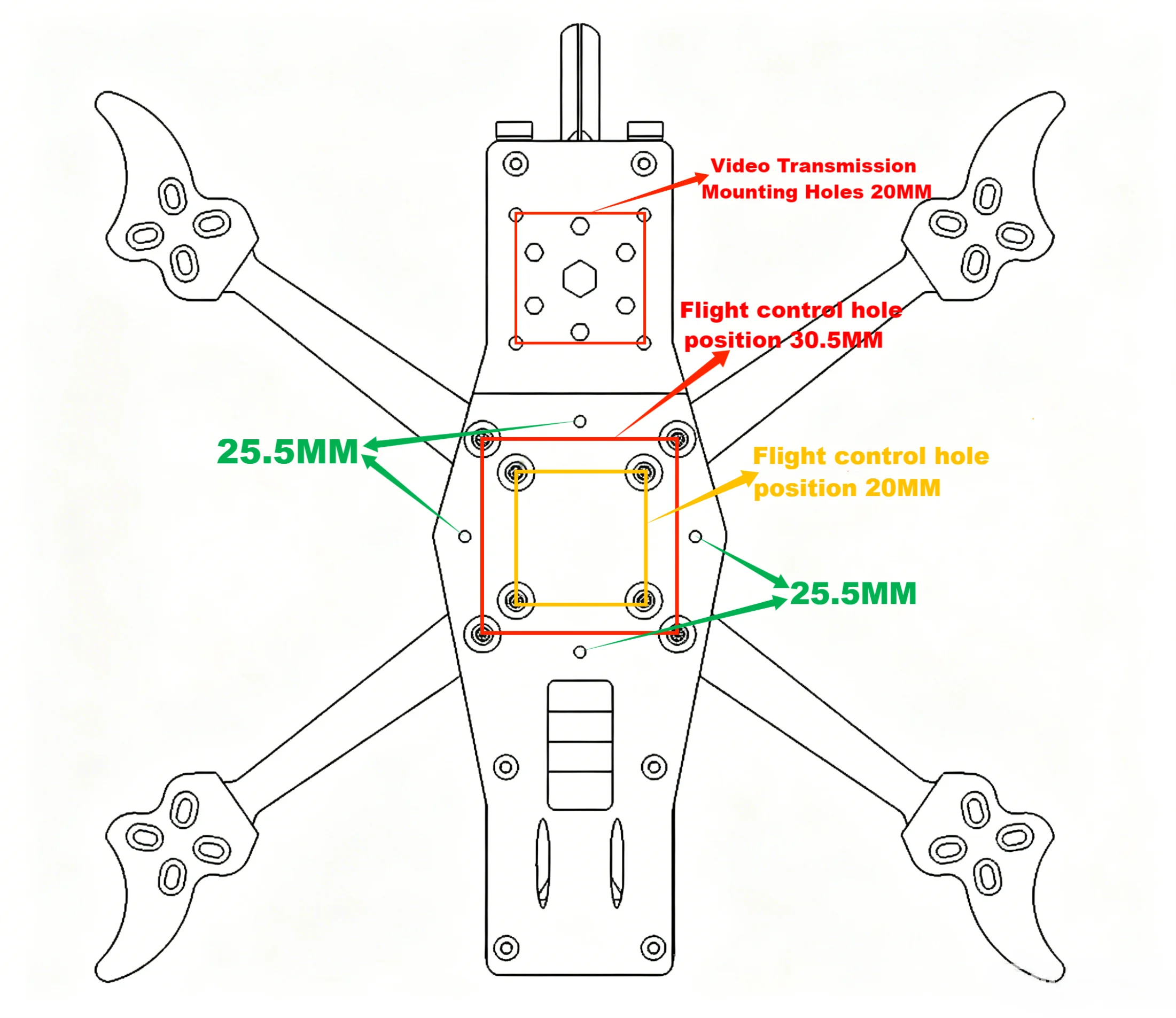

• Flight control hole spacing: 20mm * 20mm (M3)，25.5mm*25.5mm(M2) , 30.5MM*30.5MM (M3)
• Motor installation hole positions: 9mm * 9mm (M2) and 12mm * 12mm (M2)
• Battery: 3S-4S battery

Recommended configuration:

• Motor: 1505 3750KV motor
• ESC: B-CUBE 4IN1-20MM 50A
• Battery: 3S-4S
• Paddle: 3-3.5inch paddle
• Video transfer: B-CUBE VTX1000

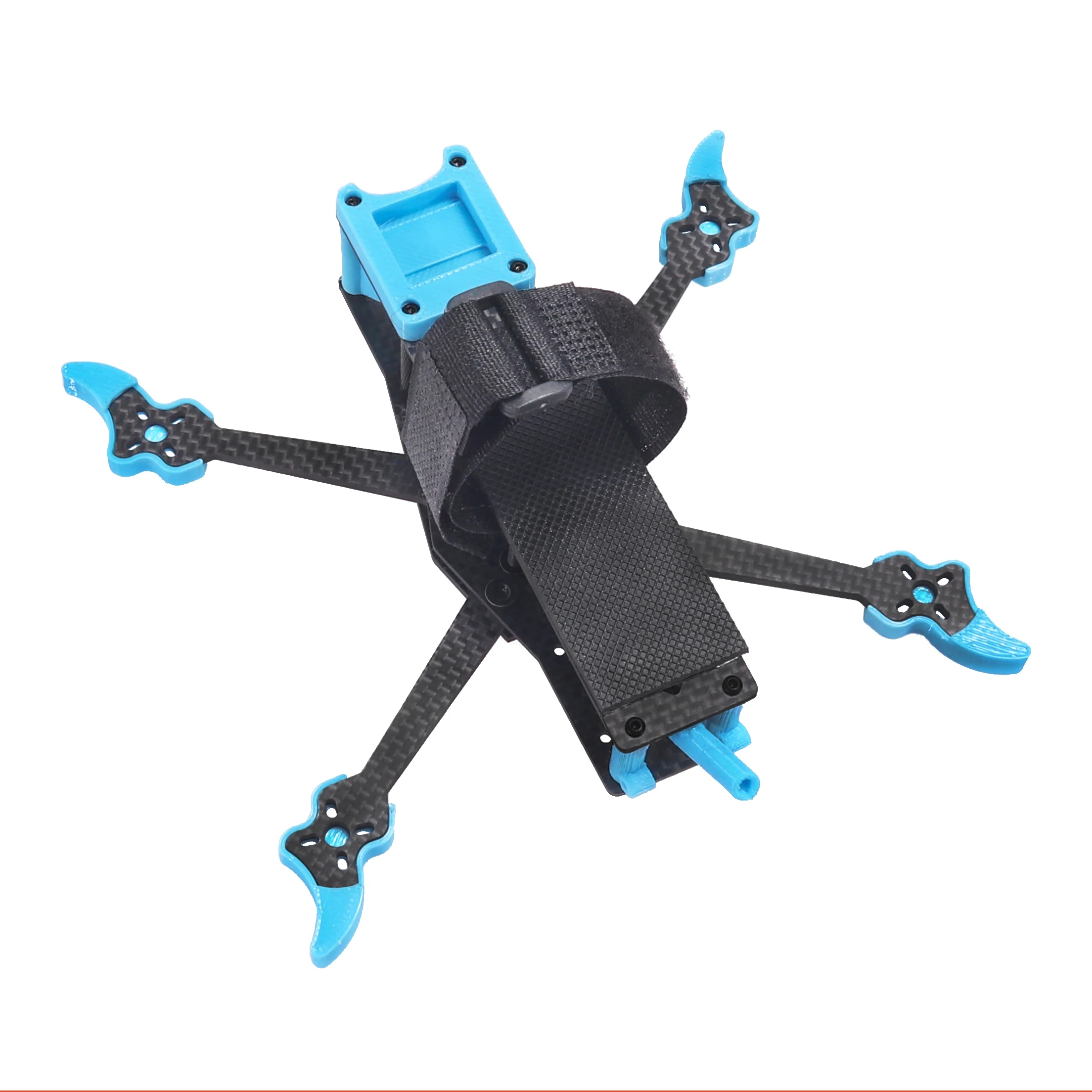

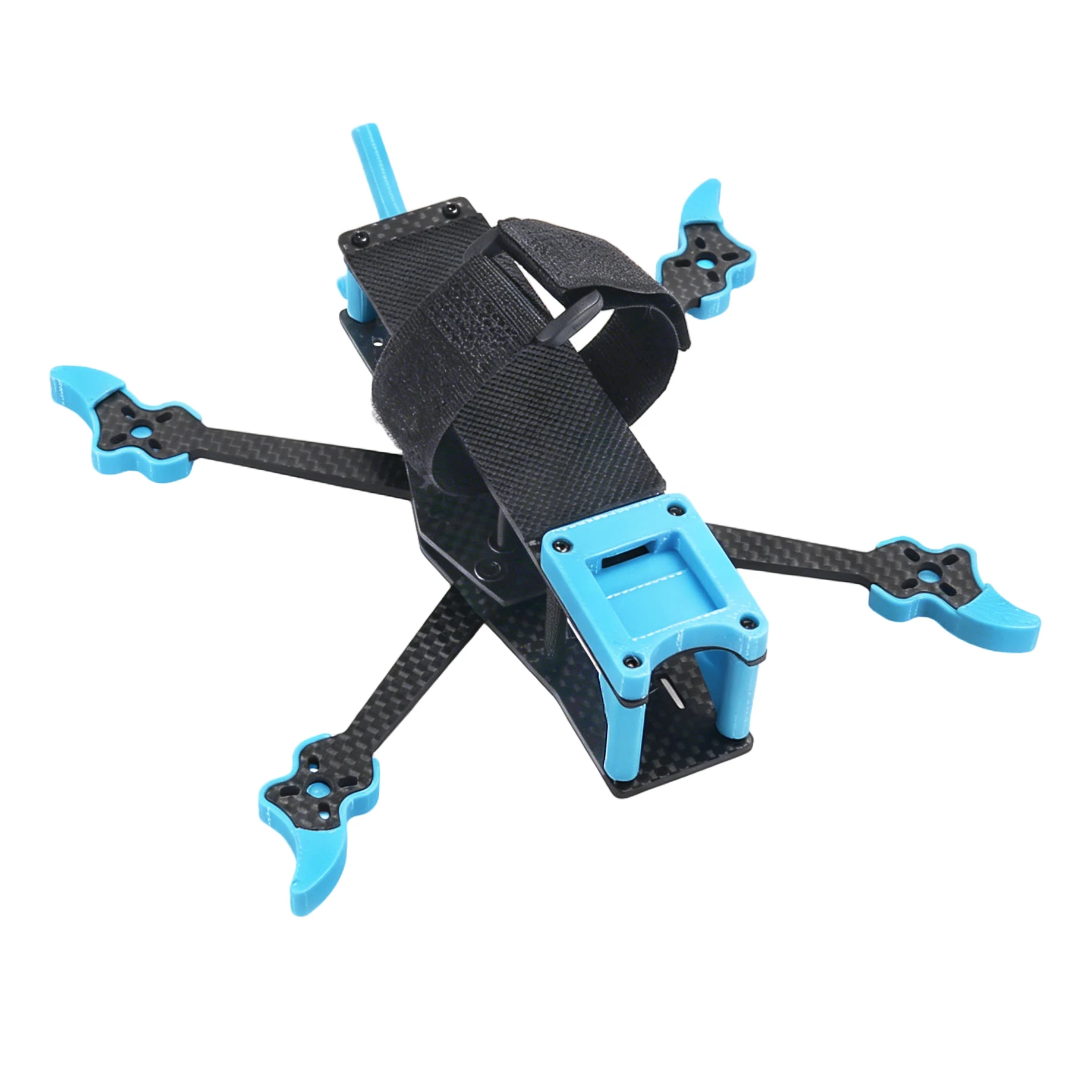

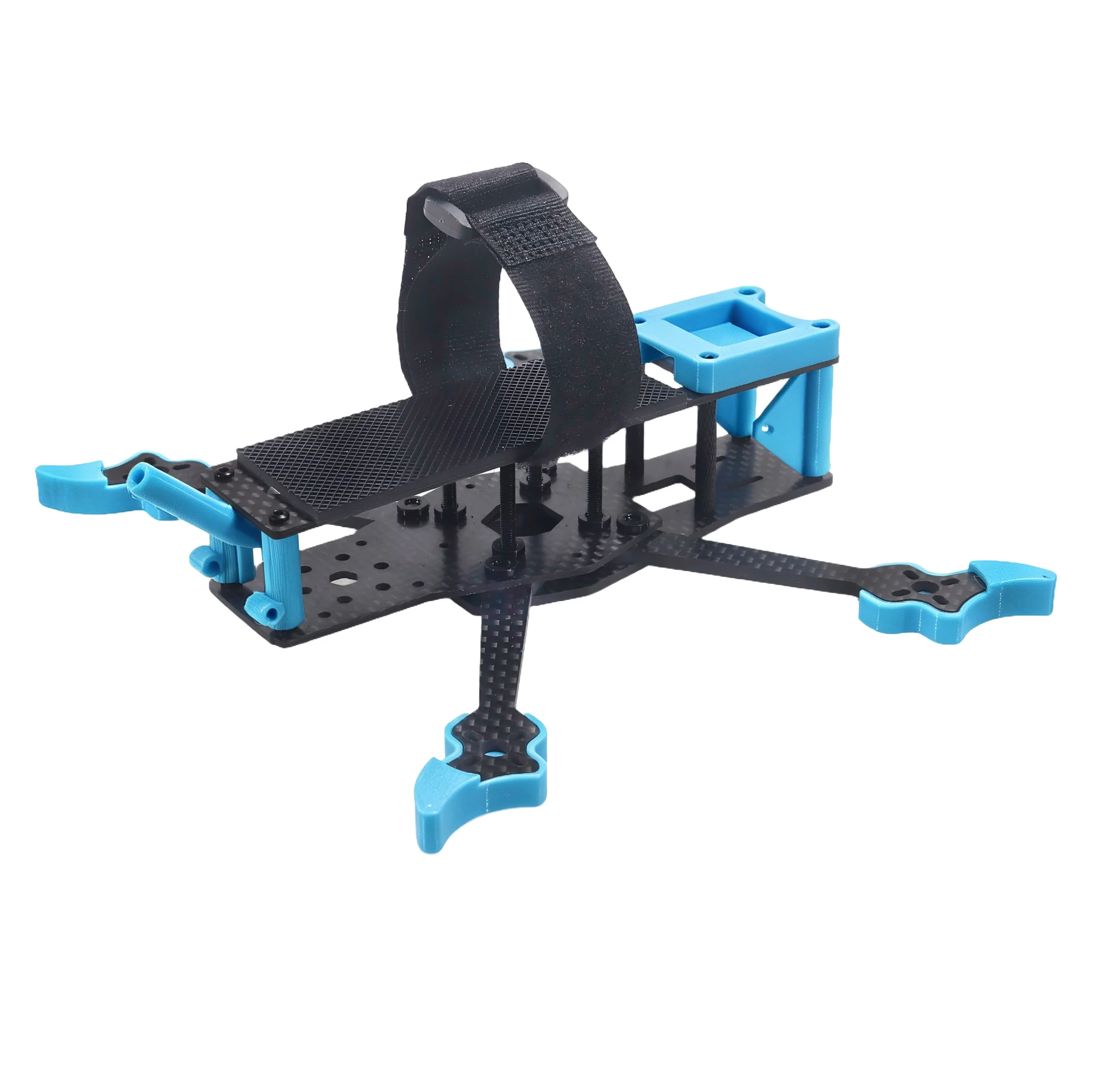

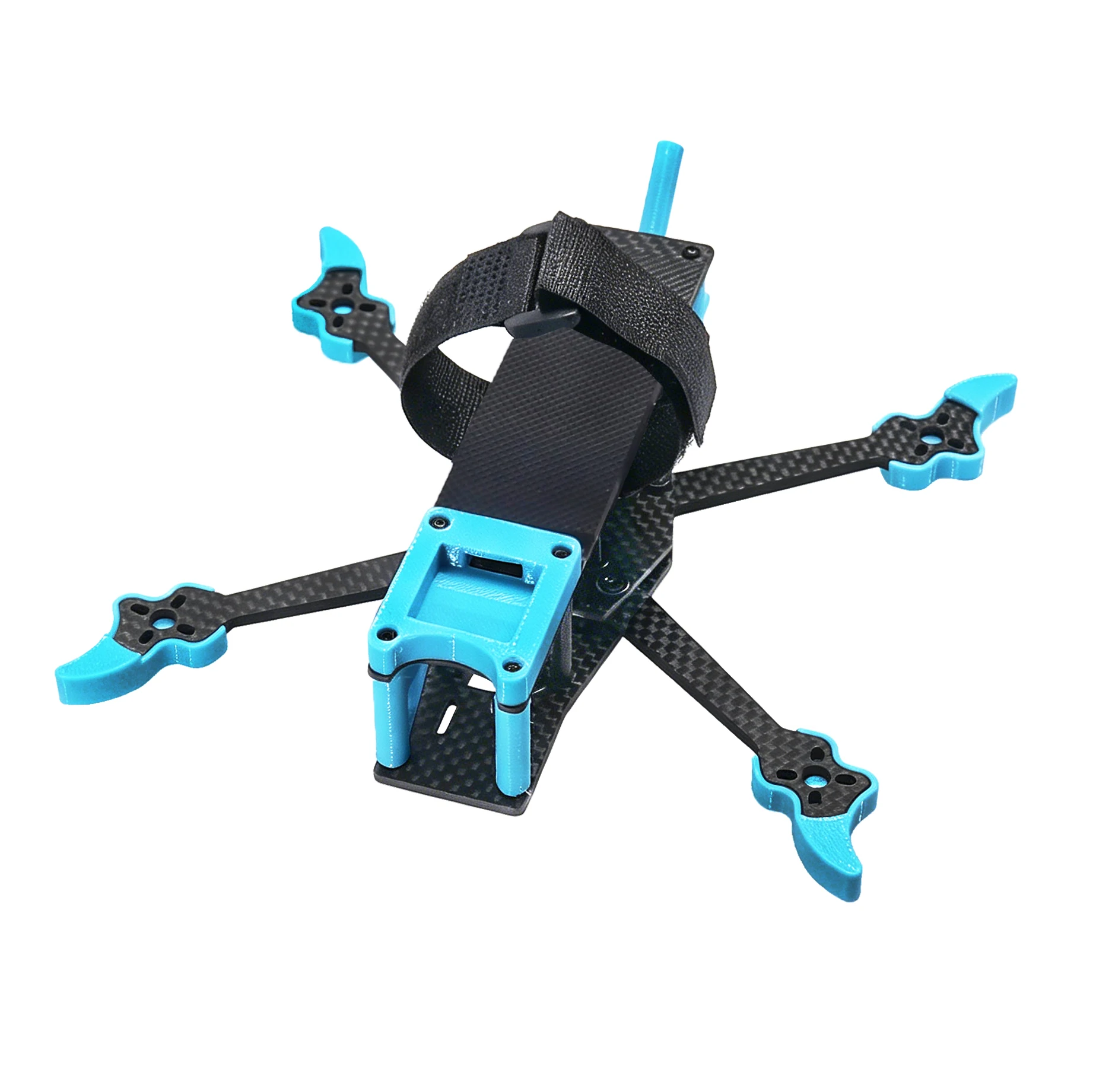

B-CUBE Blade 3.5inch Rack
