Frog 5inch Drone Frame

Product parameters:

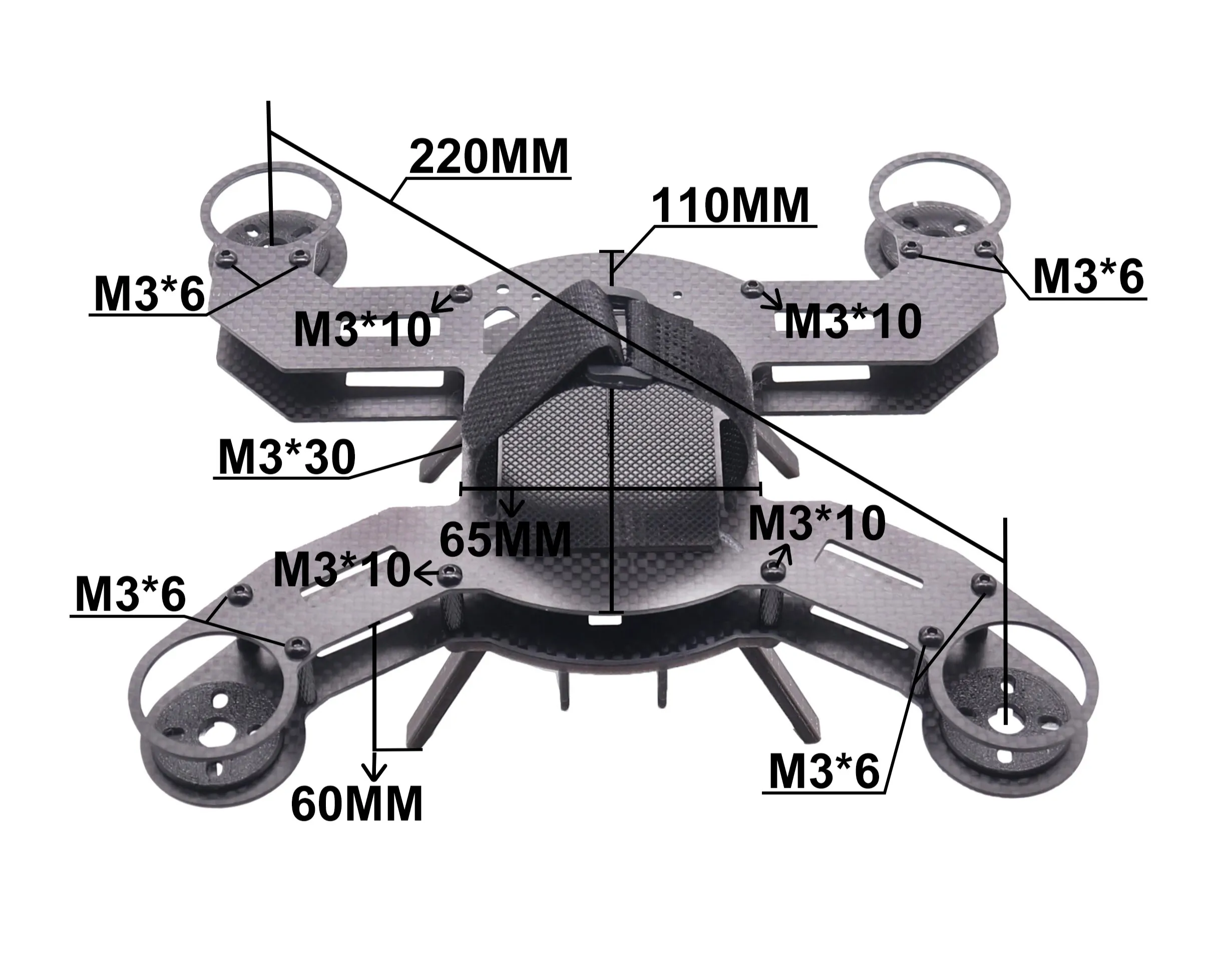

• Wheelbase: 225mm (5inch)
• Weight: Approximately 141.8g (including printed copies)
• Thickness: Bottom plate 1.6mm, upper plate 1.6mm, arm 1.6mm
• Paddle: 5-inch paddle
• Flight control hole spacing: 30.6 * 30.6mm (M3)
• Hole spacing for image transmission: 30.6 * 30.6mm (M3)
• Camera installation width: 19mm
• Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
• Battery: 3S/4S 4000mAh
• 3D print(should choose with 3D Print):
  1 camera brackets,
• Print color: Black PETG

Recommended configuration:

• Motor: 2205 2300KV motor
• ESC: B-CUBE 4IN1-30MM 45A
• Battery: 3S-4S
• Paddle: 5045
• Image transfer: B-CUBE VTX1000
