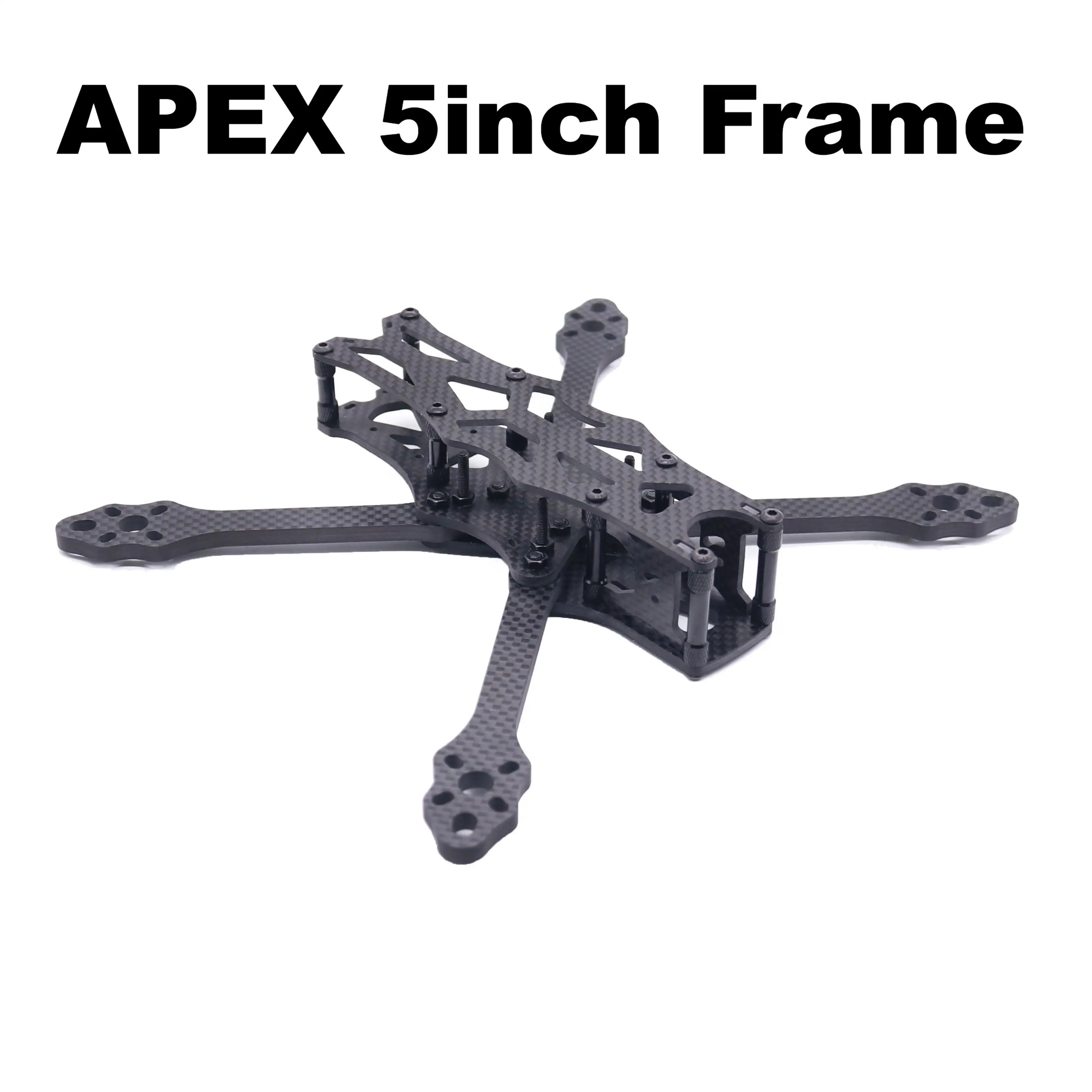

APEX 5inch Frame
Wheelbase: 215mm (4inch)
Weight: Approximately 115g (including printed copies)
Thickness: Bottom plate 3.0mm, upper plate 2.0mm, arm 5.0mm
Paddle: 5-inch paddle
Flight control hole spacing: 30.6 * 30.6mm (M3)
Hole spacing for image transmission: 20 * 20mm (M2)
Camera installation width: 19mm
Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
Battery: 3S/4S 2600mAh

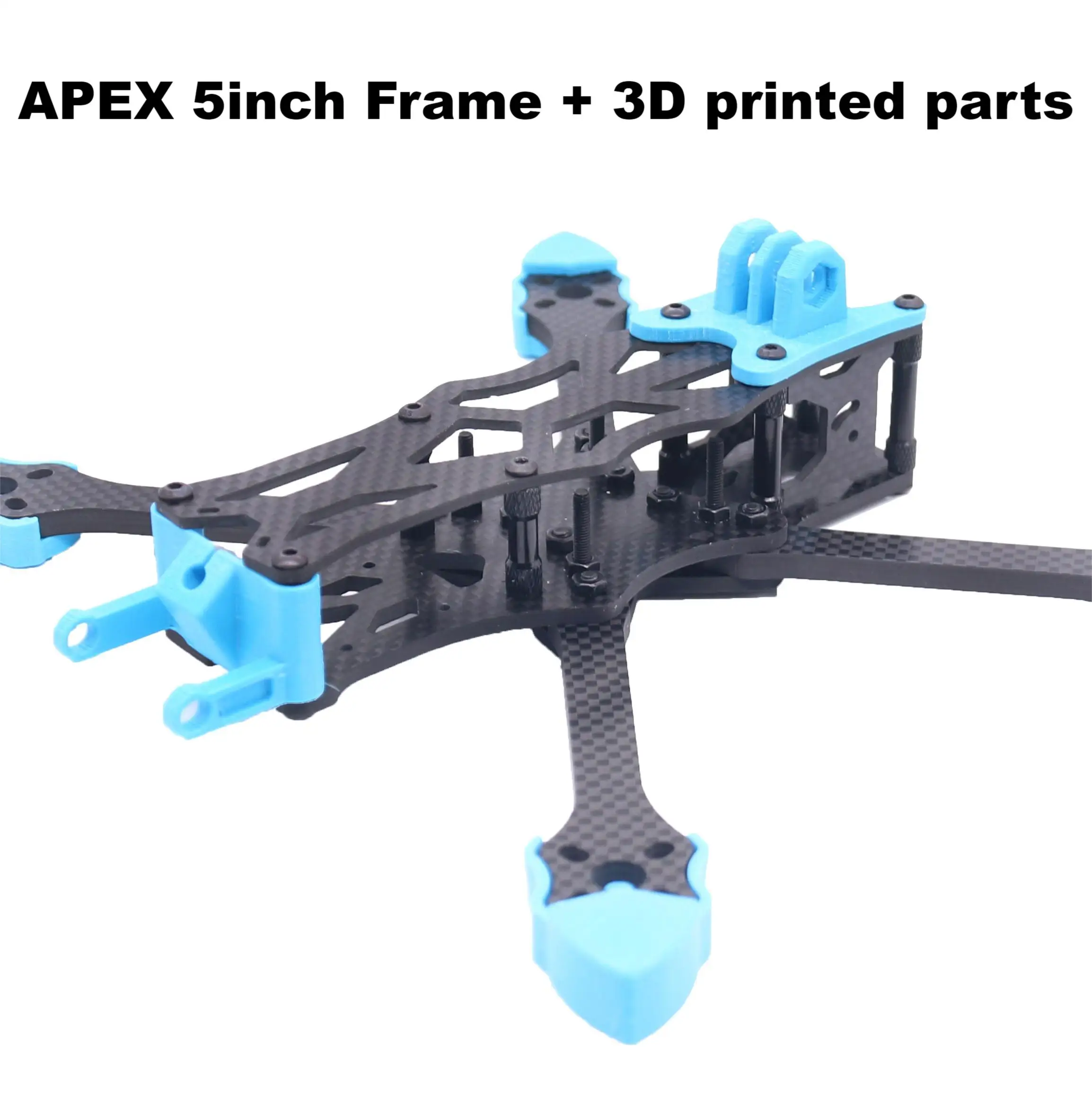

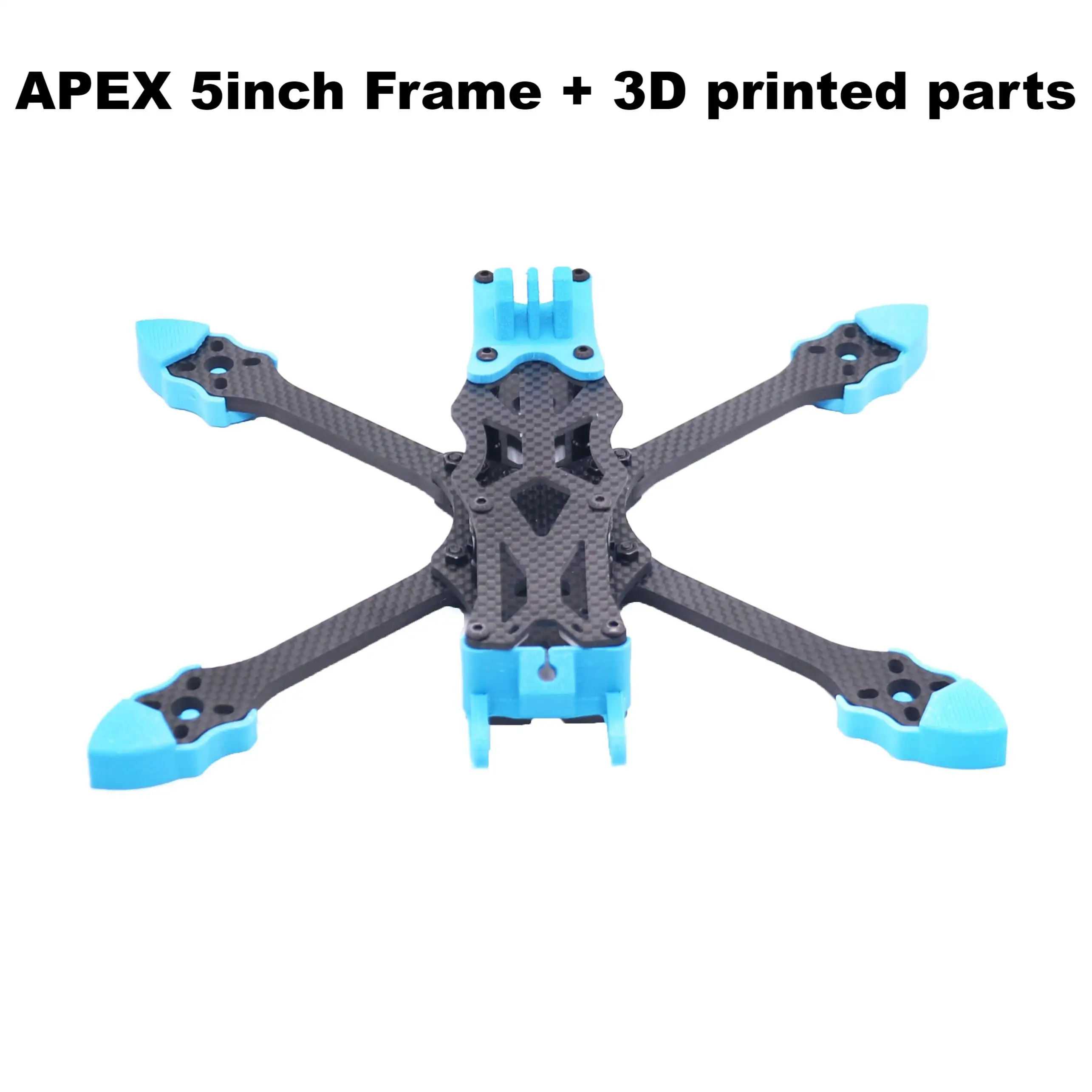

3D print(should choose with 3D Print):

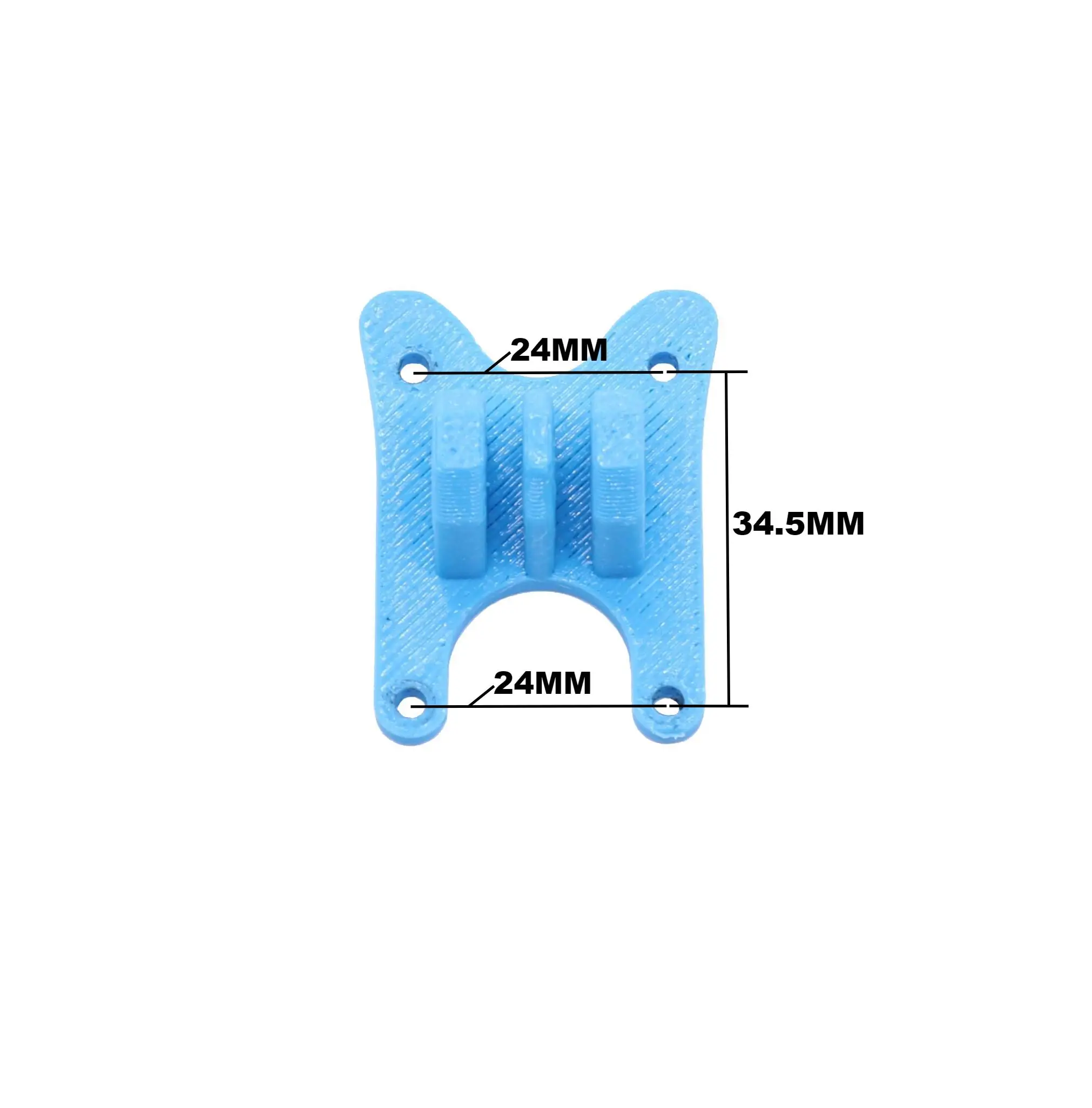

1 camera brackets,
4 arm tripod,
1 antenna pedestal,
Print color: Blue TPU
Recommended configuration:
Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1-30MM 45A
Battery: 3S-4S
Paddle: 5045
Image transfer: B-CUBE VTX1000
