Product parameters:

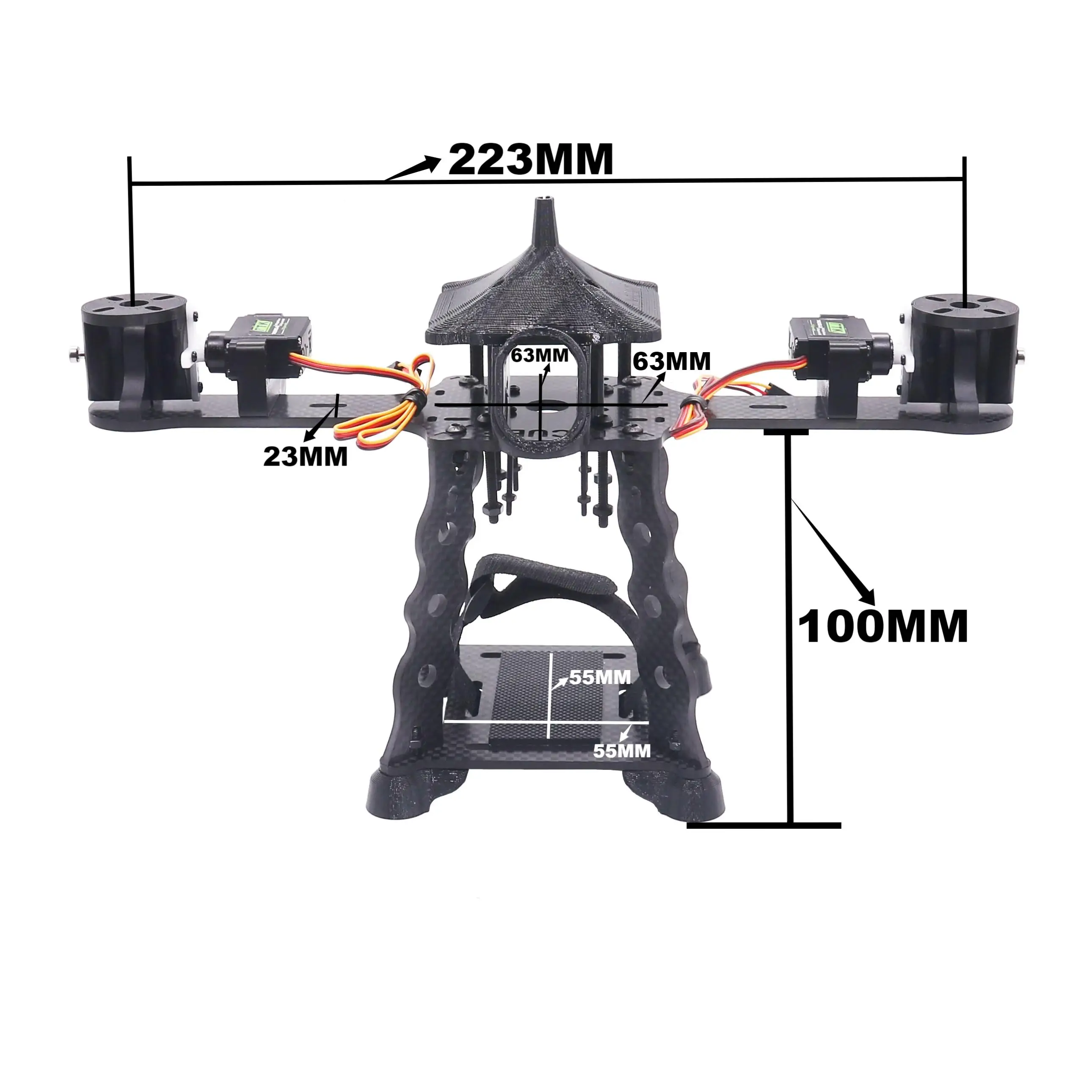

- Wheelbase: 223mm 7inch(include two servo and printed copies)
- Weight: Approximately 199g (including printed copies)
- Thickness: upper plate 3.0mm, Bottom plate 2.5mm, Motor arm 6.0mm
- Paddle: 7-inch paddle
- Flight control hole spacing: 30.6 * 30.6mm (M3)
- Hole spacing for image transmission: 30.6 * 30.6mm (M3)
- Camera installation width: 19mm
- Motor installation hole positions: 12mm * 12mm (M2)
- Battery: 3S-6S 4000mAh
- 3D print: including 1 camera brackets
- Print color: Black TPU
Recommended configuration:
- Motor: 2807 2300KV motor
- ESC: B-CUBE 45A
- Battery: 3S-6S
- Image transfer: B-CUBE VTX1000
- Servo: PTK7452MG-D 9g
